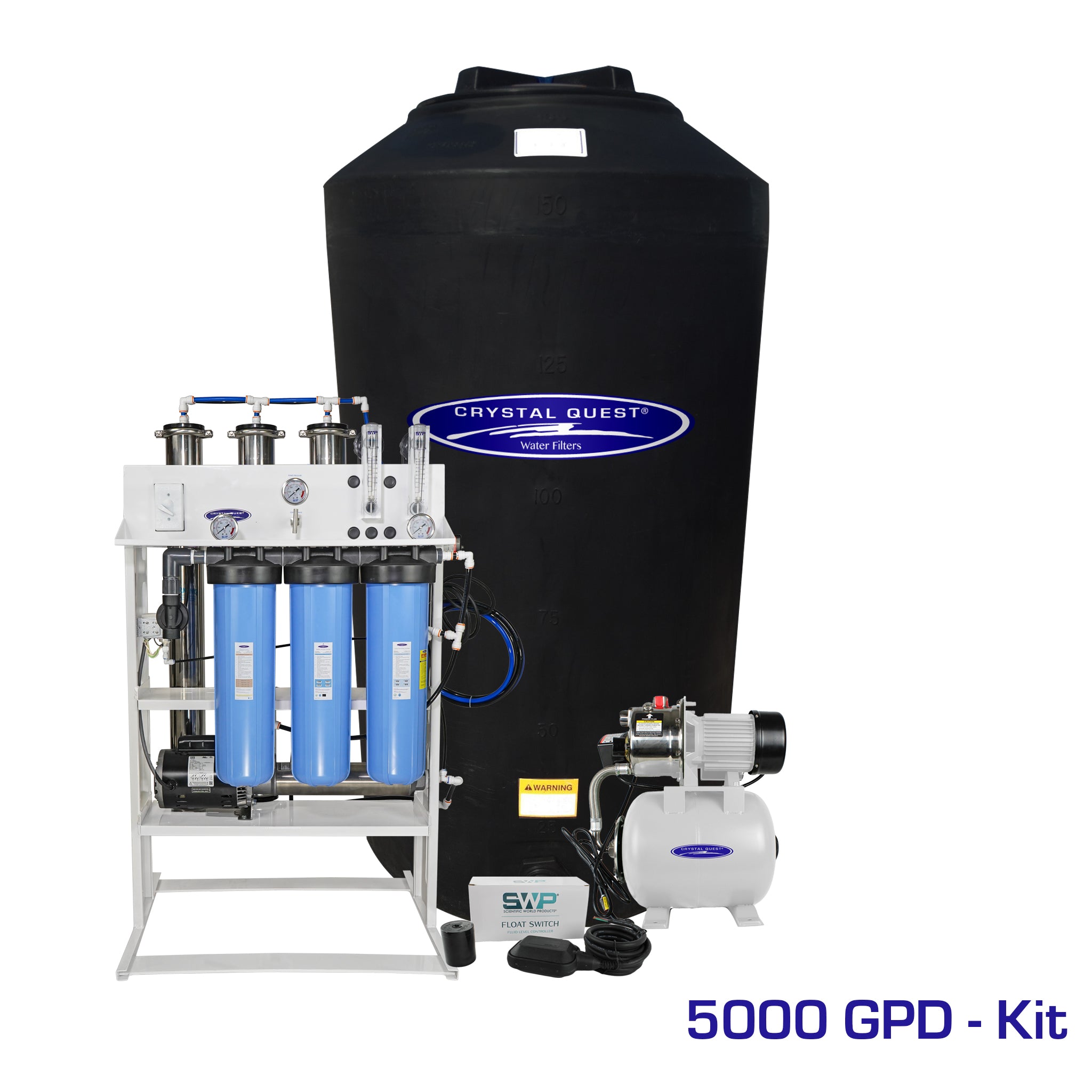

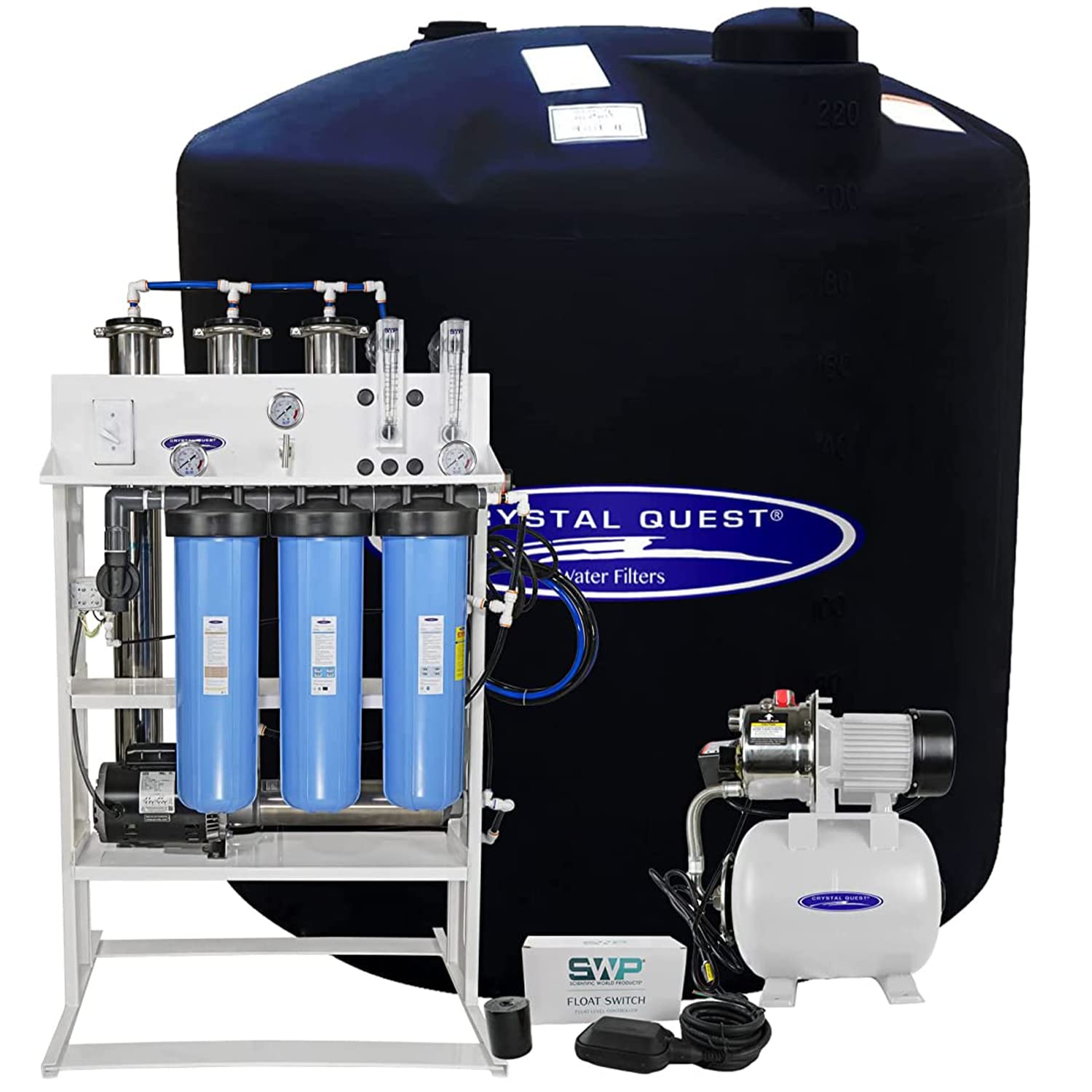

Crystal Quest 5,000 GPD Whole House RO System + 220 Gal Storage Tank + 1.5 HP Pump
🚚 Free Shipping to contiguous US • 🔁 30-Day Returns • 💰 Price Match Guarantee • 🔒 Secure Checkout
🛡 Warranty: Manufacturer warranty included. Coverage varies by product — see product description below for full warranty details.
Best for: Whole-house RO buyers who already know they need storage and pressure support, not just a standalone membrane system.
Why people buy it: The tank and pump bundle solves the practical pressure and storage questions that come with whole-house RO.
Watch out for: Confirm your water test, flow needs, tank placement, wastewater plan, and installation requirements before ordering.
If you're supplying a full homestead — multiple buildings, irrigation, livestock, and household water — you need more than filtration capacity. You need stored, treated water that's ready on demand regardless of what your well pump is doing. This complete kit pairs Crystal Quest's 5,000 GPD whole-house RO system with a 220-gallon storage tank and a 1.5 HP horizontal pump, giving you a turnkey off-grid water infrastructure solution in a single purchase.
Crystal Quest 5,000 GPD RO System + 220 Gal Tank + 1.5 HP Pump — Key Features
- Complete system: RO unit, 220-gallon storage tank, and 1.5 HP horizontal pump included
- 5,000 gallons per day filtration capacity — no rationing, no pressure drops under full demand
- 220-gallon polyethylene storage tank (42"D x 44"H) — treated water buffer for peak demand periods
- 1.5 HP horizontal pump — pressurizes the stored water and distributes it throughout the property
- 96–98.5% NaCl rejection — removes dissolved solids, heavy metals, nitrates, fluoride, and most waterborne contaminants
- Operates on 110V or 220V — compatible with off-grid solar inverter setups
- Pre-plumbed, pre-wired, pre-assembled RO unit — reduced installation complexity
- Stainless steel TFC membrane housing — long service life in demanding environments
- ISO certified, BPA-free throughout

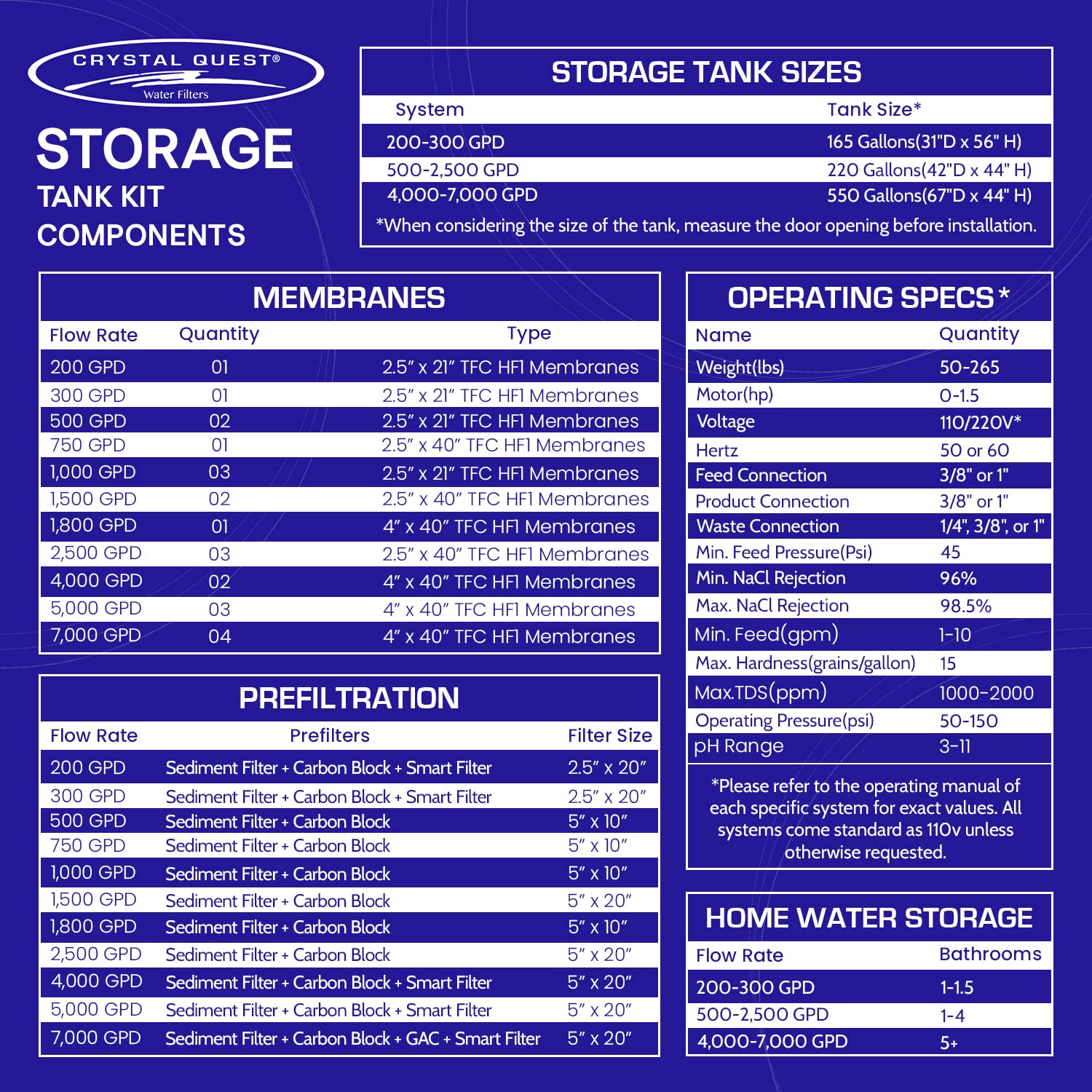

Specifications
| Capacity | 5,000 GPD |
| NaCl Rejection | 96% min / 98.5% max |
| Max TDS (feed water) | 2,000 ppm |
| Operating Pressure | 50–150 psi |
| Min Feed Pressure | 45 psi |
| pH Range | 3–11 |
| Max Hardness | 15 grains/gallon |
| Voltage | 110V or 220V AC, 50/60 Hz |
| Motor (RO) | 1.5 HP |
| RO Unit Dimensions | 30" x 38" x 47" |
| Storage Tank Capacity | 220 Gallons |
| Storage Tank Dimensions | 42"D x 44"H |
| Distribution Pump | 1.5 HP Horizontal |
| RO Weight | ~265 lbs |
| Pump Type | Brass Rotary Vane (standard) |
| Frame | Aluminum, white powder coated |
| Membrane Type | TFC (Thin Film Composite) |
| Membrane Housing | Stainless Steel |
| Certifications | ISO Certified, BPA-Free |
| Warranty | 1-Year Limited |
| SKU | CQE-CO-02029K220 |
What's Included
- Crystal Quest 5,000 GPD Whole House RO System (pre-plumbed, pre-wired, pre-assembled)
- 220-Gallon polyethylene storage tank (42"D x 44"H)
- 1.5 HP horizontal distribution pump
- TFC membranes in stainless steel housing
- Brass rotary vane pump (RO system)
- Aluminum mounting frame
- Installation hardware and documentation
