Standard whole house filters top out at 9 to 13 GPM. For larger homes, small farms, and light commercial applications, that flow rate creates pressure problems during peak demand. The Crystal Quest High Flow Whole House Water Filter runs at 15, 20, or 35 GPM depending on the configuration you choose, using heavy-duty composite fiberglass tanks and an all-brass motor-driven control valve built for continuous use. If your household or property routinely drops pressure when multiple lines run simultaneously, this is the system to fix that.
Crystal Quest High Flow Whole House Water Filter Key Features
- Three Flow Rate Configurations: Available in 15, 20, and 35 GPM. Choose based on your peak demand. The 35 GPM configuration handles small farms and light commercial use where standard residential systems fall short.
- Heavy-Duty Composite Fiberglass Tanks: Built for continuous high-flow operation. These are not the residential-grade tanks found in smaller systems.
- All-Brass Motor-Driven Control Valve: Automates backwash cycles. The self-adjusting backwash controller includes a flow limiter to optimize media bed cleaning without manual adjustment.
- Two Filtration Media Options: SMART Water Filter media includes two GAC types, Eagle Redox Alloy 6500 and 9500, ion exchange resin, ceramic balls, and tourmaline balls. The Alkalizing Eagle Filter option adds a 0.2-micron UF membrane, calcium carbonate, ionizer media, and coconut GAC.
- Timer Control Valves: Automated backwash on a set schedule. No manual intervention required.
- High Flow Distributor: Designed to maintain even media bed contact at high flow rates, which smaller systems do not include.
- BPA-Free Construction: All water-contact components are BPA-free.
Specifications

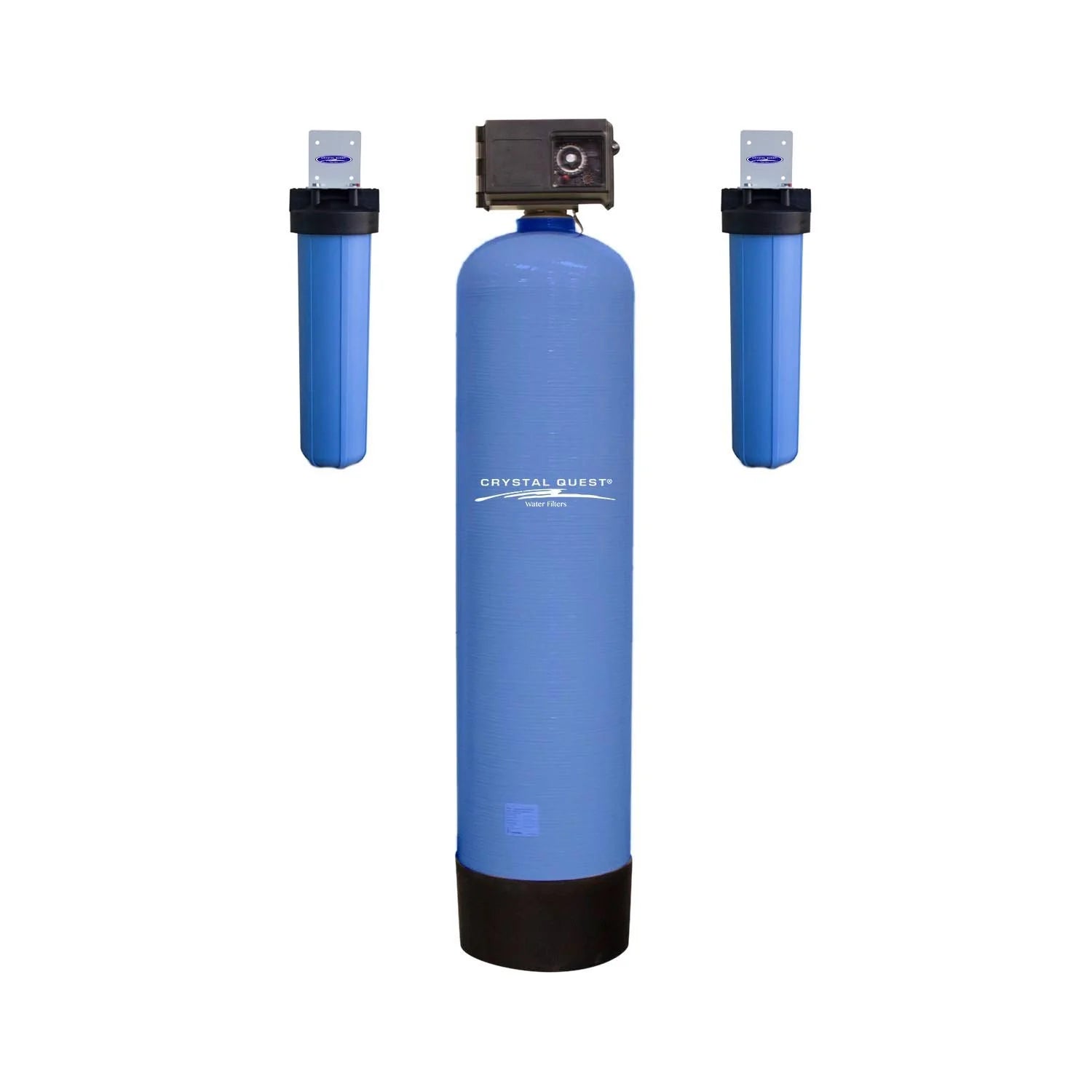

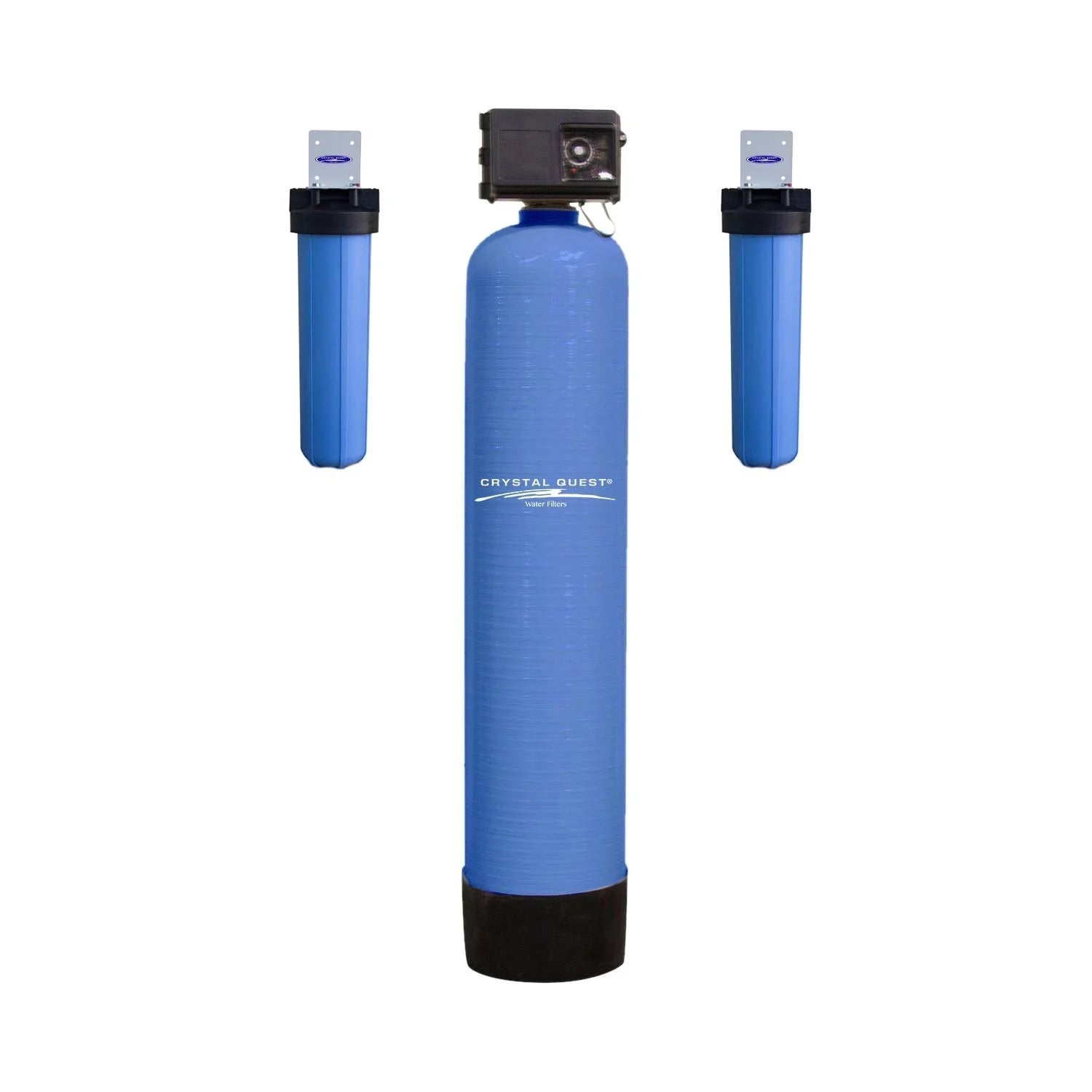

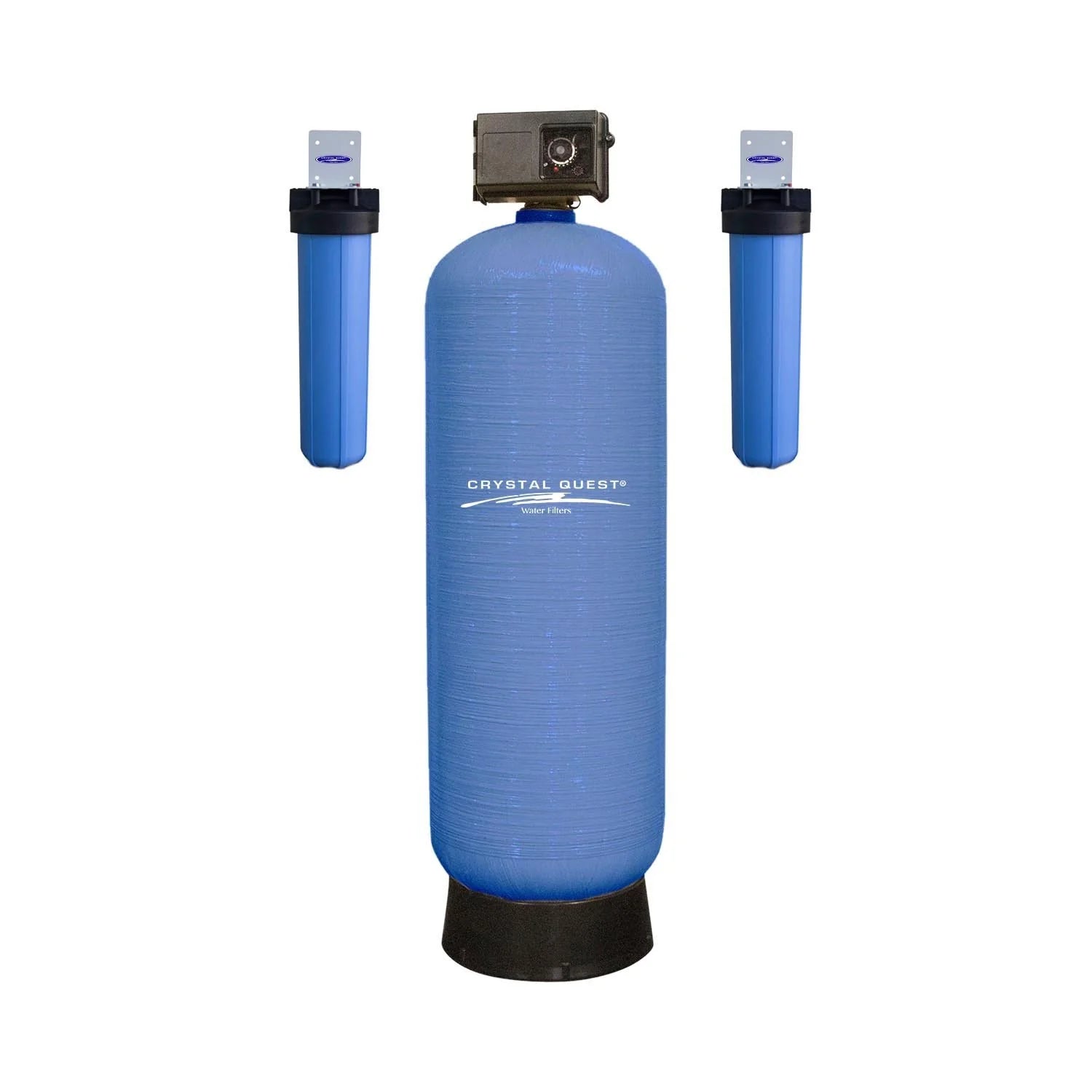

Standalone Configuration
| Flow Rate | Mineral Tank | Pipe Size | Footprint (W x D x H) |
|---|---|---|---|
| 15 GPM | 14 x 65 inches | 1.5 inches | 15 x 16 x 75 inches |
| 20 GPM | 16 x 65 inches | 1.5 inches | 17 x 18 x 75 inches |
| 35 GPM | 21 x 62 inches | Contact for specs | 23 x 24 x 84 inches |

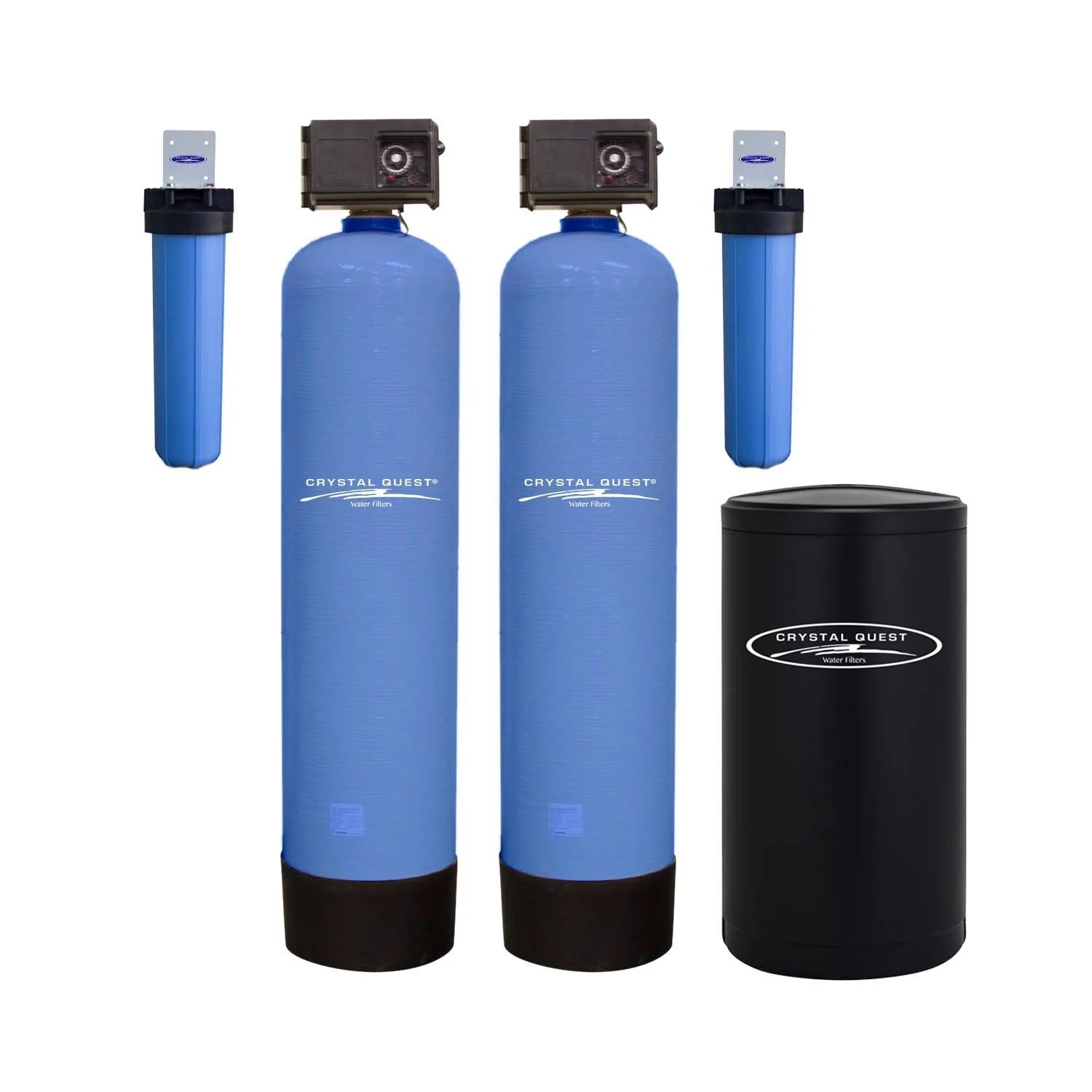

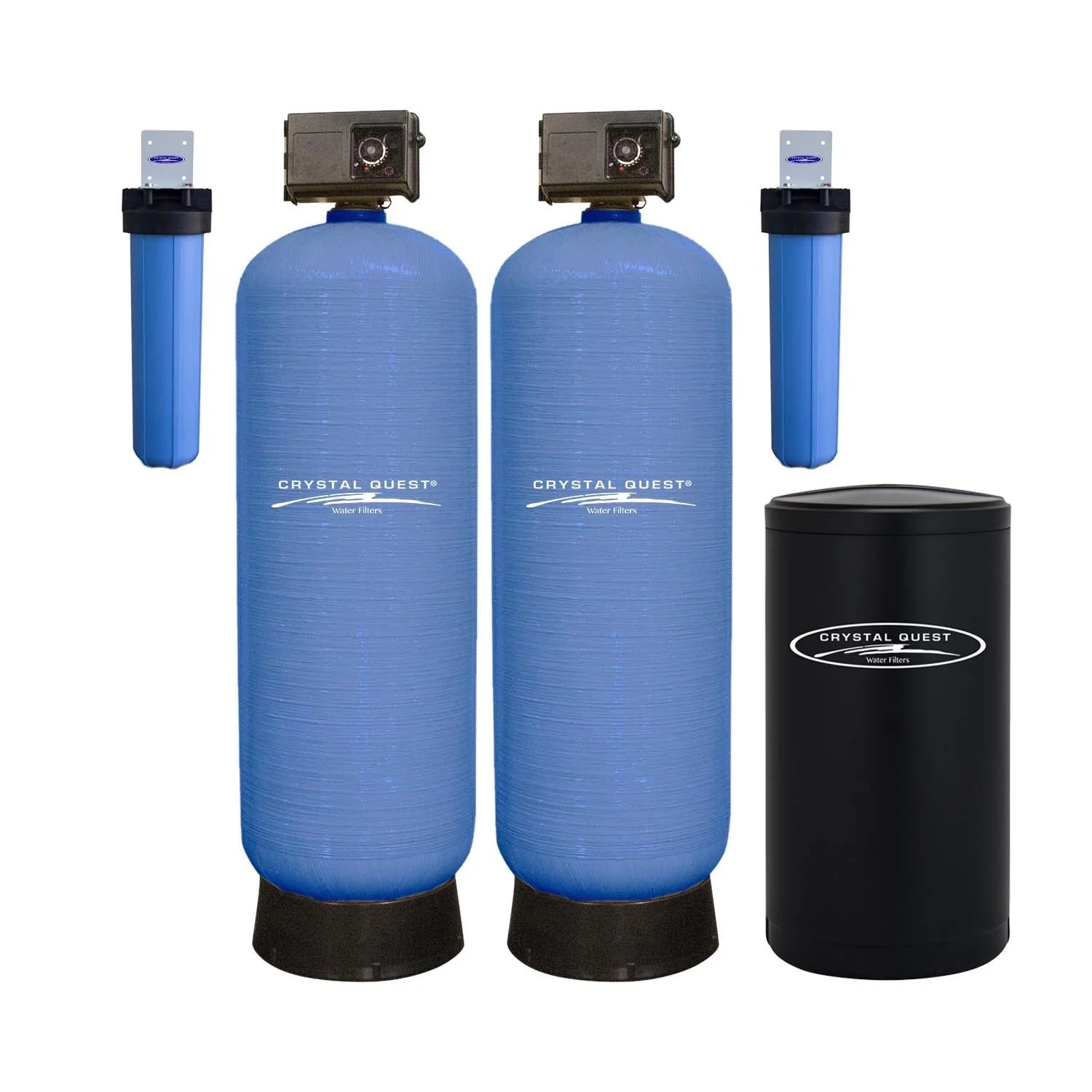

With Water Softener Configuration
| Flow Rate | Brine Tank | Total Footprint (W x D x H) |
|---|---|---|
| 15 GPM | 24 x 41 inches | 48 x 26 x 75 inches |
| 20 GPM | 24 x 41 inches | 50 x 26 x 75 inches |
| 35 GPM | 24 x 50 inches | 56 x 26 x 84 inches |
SKU: CQE-WH-02059A
What's Included
- High flow composite fiberglass mineral tank with selected filtration media
- All-brass motor-driven control valve with timer backwash
- Self-adjusting backwash controller with flow limiter
- High flow distributor
- Sediment pre-filter cartridge, 4-5/8 x 20 inches (CQE-RC-04034)
- Carbon block post-filter cartridge, 4-5/8 x 20 inches
- Installation hardware and fittings
Replacement media: SMART Multimedia (CQE-RM-05017), Eaglesorb Water Softener resin (CQE-RM-05002), Eaglesorb Anti-Scale (CQE-RM-05013).
Compatible Add-Ons
- Water Softener: Full ion exchange softener with brine conditioner tank. Adds hard water treatment to the same system. With the softener, water heater efficiency improves by up to 29%, appliance life extends by up to 30%, and detergent use drops by up to 70%.
- Salt-Free Anti-Scale System: Conditions water to reduce scale buildup without salt or ion exchange. Uses Eaglesorb Anti-Scale media (CQE-RM-05013).
- Magnet Water Conditioner: Magnetic water conditioning for scale reduction without chemicals or salt.
Installation and User Documentation
Download High Flow Whole House Filter Installation Manual (PDF)
Download General Whole House Filter Installation Manual (PDF)
