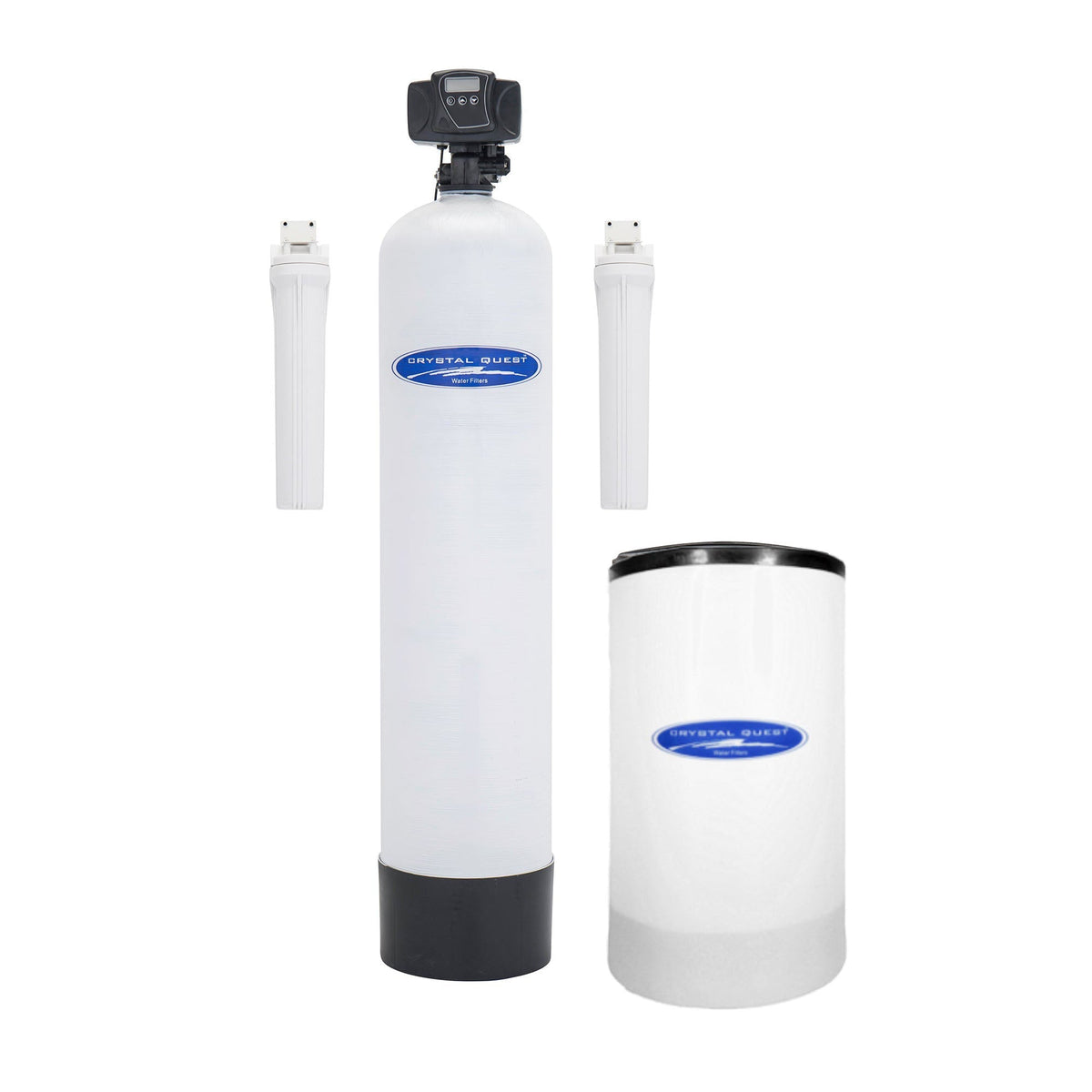

Crystal Quest Tannin Whole House Water Filter Standalone Fiberglass Tank Front View

Crystal Quest Tannin Whole House Water Filter | Tannin Removal for Well Water

by Crystal Quest
$1,791.00
Pay as low as $149.25/mo with Shop Pay Installments — 0% APR options available.
✅ In Stock — Ships within 2–4 business days
Configuration
Structure
Tank Size

Notify me when back in stock

🚚 Free Shipping to contiguous US  •  🔁 30-Day Returns  •  💰 Price Match Guarantee  •  🔒 Secure Checkout

🛡 Warranty: Manufacturer warranty included. Coverage varies by product — see product description below for full warranty details.

Yellow or brown water with a bitter taste usually points to tannins. Tannins are organic compounds that leach into groundwater from decaying leaves, bark, and soil. A standard carbon filter won't remove them. This system uses Eaglesorb tannin resin in a self-backwashing tank to pull tannins out of your water supply before they reach your taps.

Crystal Quest Tannin Whole House Water Filter Key Features

  • Removes tannins up to 5 ppm using Eaglesorb ion-exchange resin (part CQE-RM-05003)
  • 3-stage treatment: sediment pre-filter, tannin resin tank, carbon block post-filter
  • Microprocessor-controlled backwash valve regenerates automatically, using approximately 40 gallons per cycle
  • 1.5 cu ft tank: 9-11 GPM flow rate, 1 million gallon capacity, 10"x54" tank
  • 2.0 cu ft tank: 10-13 GPM flow rate, 1.5 million gallon capacity, 12"x52" tank
  • Softener add-on handles hardness up to 40 grains per gallon
  • Stainless steel tank option available; note that pinholes can develop in humid or coastal salt-air environments
  • Iron and manganese must both be below 0.2 ppm before water enters this filter. Iron coats the resin and permanently reduces its effectiveness. Pre-treat iron if your levels are higher.

Specifications

Spec 1.5 cu ft 2.0 cu ft
Tank Dimensions 10" x 54" 12" x 52"
Flow Rate 9-11 GPM 10-13 GPM
Capacity 1,000,000 gal 1,500,000 gal
Max Tannin Removal 5 ppm 5 ppm
Max Hardness (with softener) 40 gpg 40 gpg
Iron/Manganese Limit Below 0.2 ppm Below 0.2 ppm
Backwash Water Use ~40 gal/cycle ~40 gal/cycle
Control Valve Microprocessor, metered Microprocessor, metered
Resin Part CQE-RM-05003 CQE-RM-05003
Rated Reviews 4.8 stars, 16 reviews

What's Included

  • Mineral tank (fiberglass or stainless steel, your choice)
  • Eaglesorb tannin resin pre-loaded in tank
  • Microprocessor control valve
  • Sediment pre-filter housing and cartridge
  • Carbon block post-filter housing and cartridge
  • Bypass valve
  • Installation fittings and instructions
  • SMART Filter, water softener, or both if selected at checkout

Compatible Add-Ons

  • UV Disinfection System: +$569
  • Leak Detector: +$179
  • Vacuum Breaker: +$69
  • Metered Valve Upgrade: +$50
  • Oxidation System (for high iron pre-treatment): +$789 to $2,879
Description

Yellow or brown water with a bitter taste usually points to tannins. Tannins are organic compounds that leach into groundwater from decaying leaves, bark, and soil. A standard carbon filter won't remove them. This system uses Eaglesorb tannin resin in a self-backwashing tank to pull tannins out of your water supply before they reach your taps.

Crystal Quest Tannin Whole House Water Filter Key Features

  • Removes tannins up to 5 ppm using Eaglesorb ion-exchange resin (part CQE-RM-05003)
  • 3-stage treatment: sediment pre-filter, tannin resin tank, carbon block post-filter
  • Microprocessor-controlled backwash valve regenerates automatically, using approximately 40 gallons per cycle
  • 1.5 cu ft tank: 9-11 GPM flow rate, 1 million gallon capacity, 10"x54" tank
  • 2.0 cu ft tank: 10-13 GPM flow rate, 1.5 million gallon capacity, 12"x52" tank
  • Softener add-on handles hardness up to 40 grains per gallon
  • Stainless steel tank option available; note that pinholes can develop in humid or coastal salt-air environments
  • Iron and manganese must both be below 0.2 ppm before water enters this filter. Iron coats the resin and permanently reduces its effectiveness. Pre-treat iron if your levels are higher.

Specifications

Spec 1.5 cu ft 2.0 cu ft
Tank Dimensions 10" x 54" 12" x 52"
Flow Rate 9-11 GPM 10-13 GPM
Capacity 1,000,000 gal 1,500,000 gal
Max Tannin Removal 5 ppm 5 ppm
Max Hardness (with softener) 40 gpg 40 gpg
Iron/Manganese Limit Below 0.2 ppm Below 0.2 ppm
Backwash Water Use ~40 gal/cycle ~40 gal/cycle
Control Valve Microprocessor, metered Microprocessor, metered
Resin Part CQE-RM-05003 CQE-RM-05003
Rated Reviews 4.8 stars, 16 reviews

What's Included

  • Mineral tank (fiberglass or stainless steel, your choice)
  • Eaglesorb tannin resin pre-loaded in tank
  • Microprocessor control valve
  • Sediment pre-filter housing and cartridge
  • Carbon block post-filter housing and cartridge
  • Bypass valve
  • Installation fittings and instructions
  • SMART Filter, water softener, or both if selected at checkout

Compatible Add-Ons

  • UV Disinfection System: +$569
  • Leak Detector: +$179
  • Vacuum Breaker: +$69
  • Metered Valve Upgrade: +$50
  • Oxidation System (for high iron pre-treatment): +$789 to $2,879
