MRCOOL DIY 5th Gen 4-Zone Mini-Split System | Whole-Home Coverage, No Technician Required
🚚 Free Shipping to contiguous US • 🔁 30-Day Returns • 💰 Price Match Guarantee • 🔒 Secure Checkout
🛡 Warranty: Manufacturer warranty included. Coverage varies by product — see product description below for full warranty details.
Best for: Larger multi-room projects where ductwork is not practical and zone control matters.
Why people buy it: Four ductless zones from one DIY-focused MRCOOL system.
Watch out for: This is the point where DIY can turn into design risk. Confirm room loads, head placement, line-set paths, electrical, and code requirements.
The 4-zone system is where MRCOOL's DIY platform starts to replace a full central HVAC system for off-grid and rural homes. Four independently controlled zones means bedroom-level comfort tuning across a full homestead without running ductwork through walls or hiring a contractor for any part of the project. One outdoor condenser handles up to 27,000 BTU total capacity across four rooms, and every air handler connects via the same pre-charged quick-connect line set that defines the DIY line.
MRCOOL DIY 4-Zone System Key Features
- Four independent zones — each room runs at its own setpoint; bedrooms, living areas, offices, and workshops all independently controlled
- True DIY installation — pre-charged R-454B quick-connect line sets for all four zones; no HVAC contractor at any step
- Up to 27,000 BTU total capacity — covers a full multi-room off-grid home from a single outdoor unit

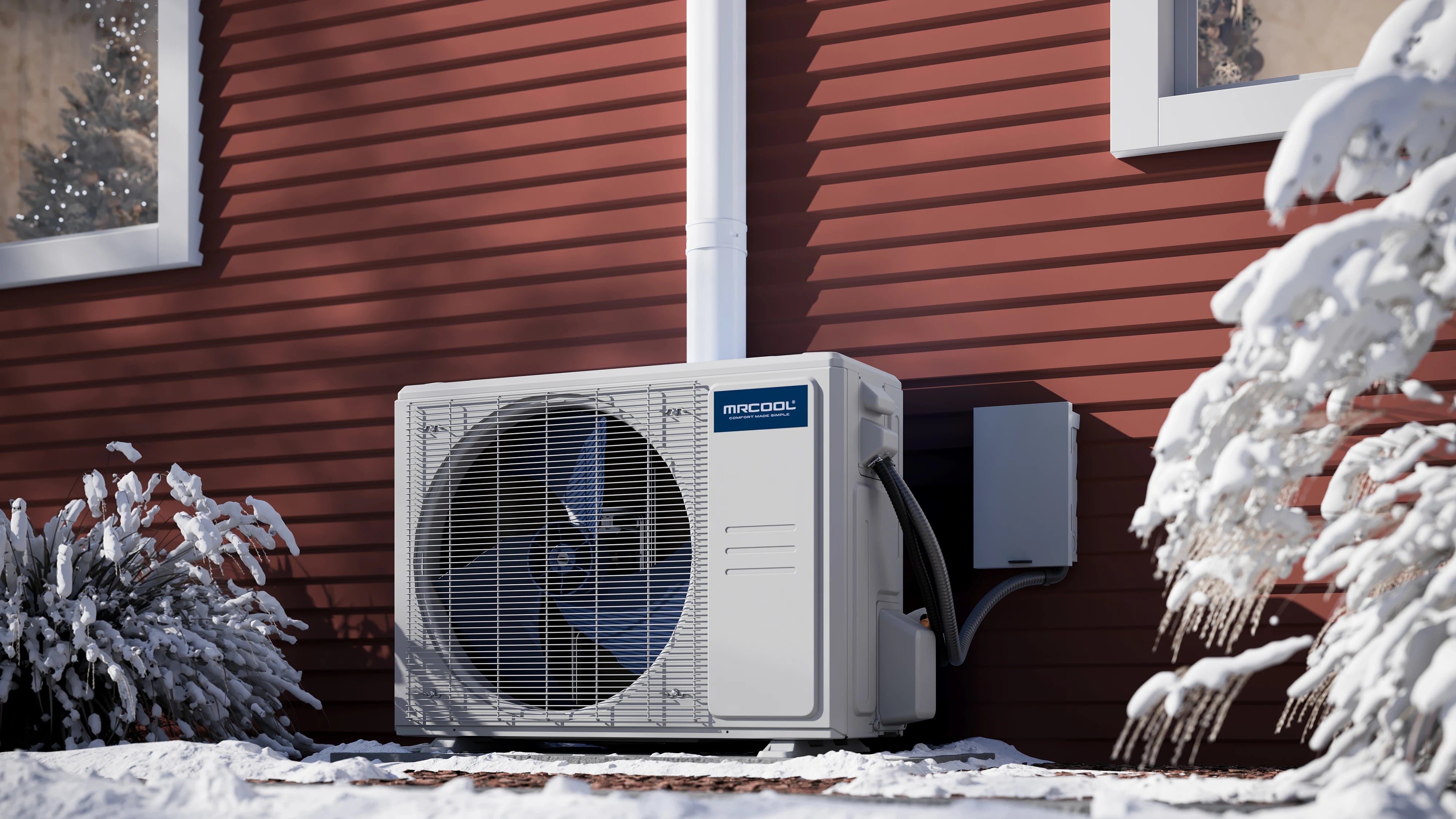

- Heats down to -13°F — cold-climate heat pump performance across all four zones simultaneously

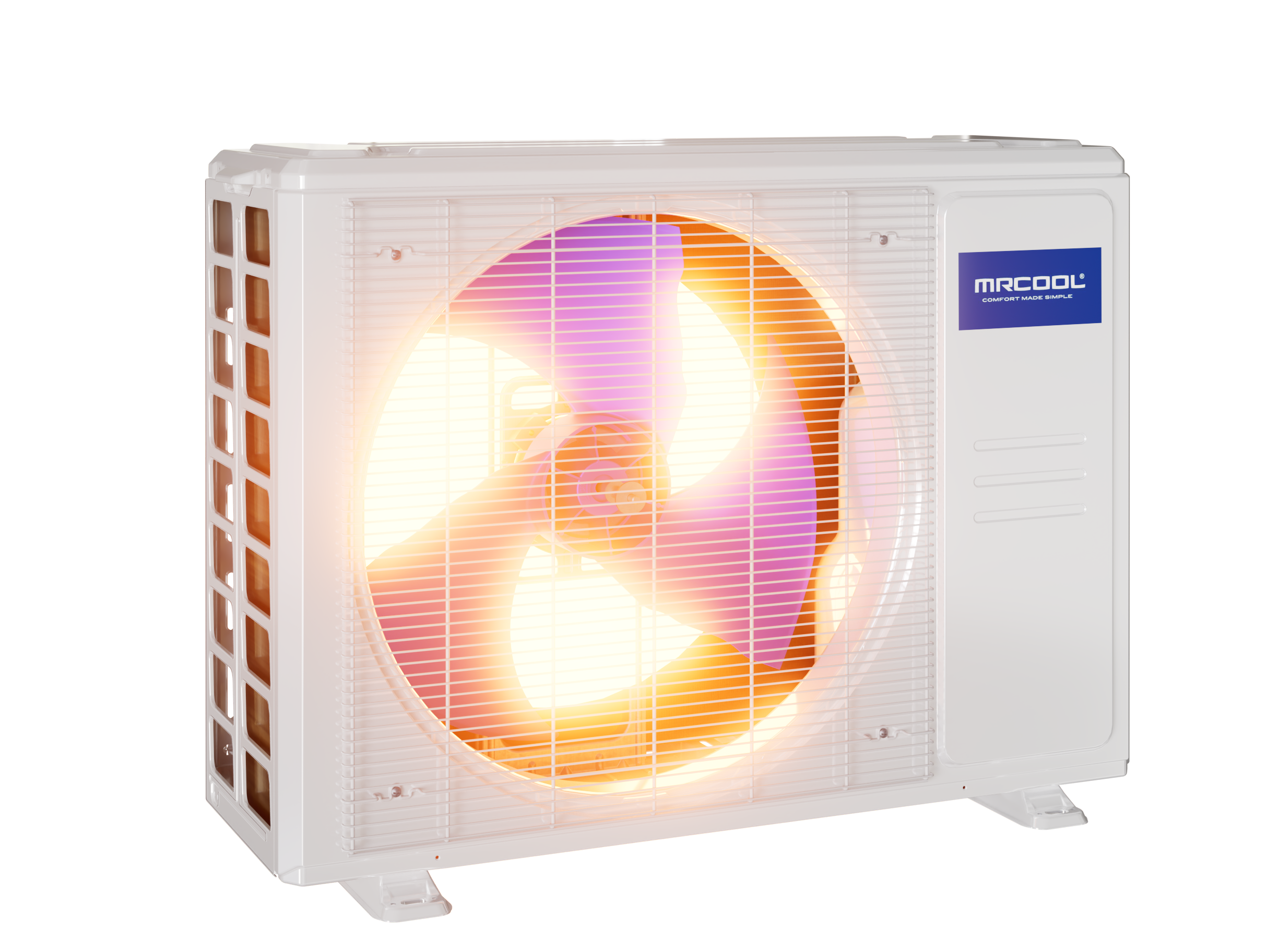

- Single 230V outdoor condenser — one unit handles the whole home; cleaner than multiple split systems
- Per-zone WiFi and app control — MRCOOL Smart HVAC app; set schedules and temperatures per zone remotely
- Gold Fin condenser coil — corrosion-resistant outdoor unit; rated for all climate conditions
- Central HVAC alternative — no ductwork required; install in any room with exterior wall access
Specifications
| Zone Count | 4 zones |
| Total System Capacity | Up to 27,000 BTU (condenser) |
| Coverage Area | Up to 1,125 sq ft total (distributed across zones) |
| Voltage | 208-230V, 60Hz, 1PH |
| Refrigerant | R-454B (pre-charged line sets) |
| Condenser Model | DIY-MULTI4-27HP230D-O |
| Min Operating Temp (Heating) | -13°F |
| Available Air Handler Sizes | 9K, 12K, 18K BTU per zone |
| Certifications | UL, ETL, AHRI |
| Warranty | 5 years parts / 7 years compressor |
What's Included
- 1x 27,000 BTU outdoor multi-zone condenser (DIY-MULTI4-27HP230D-O)
- 4x indoor wall-mount air handlers (BTU sizes per selected configuration)
- 4x pre-charged quick-connect line sets (25 ft each)
- Smart HVAC Controller Modules (WiFi) for each zone
- Remote controls for each zone
- Installation hardware
