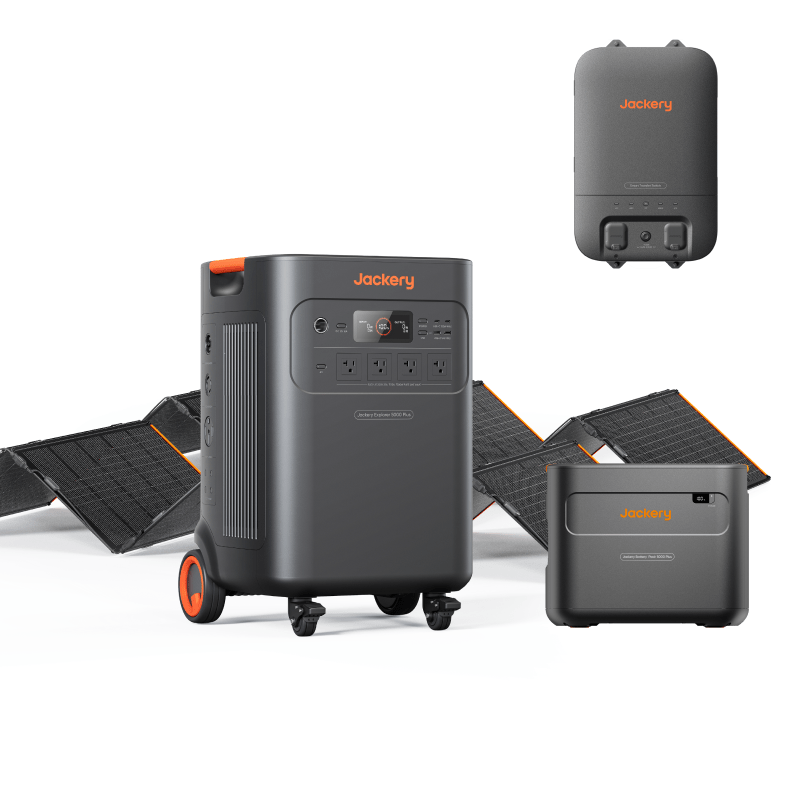

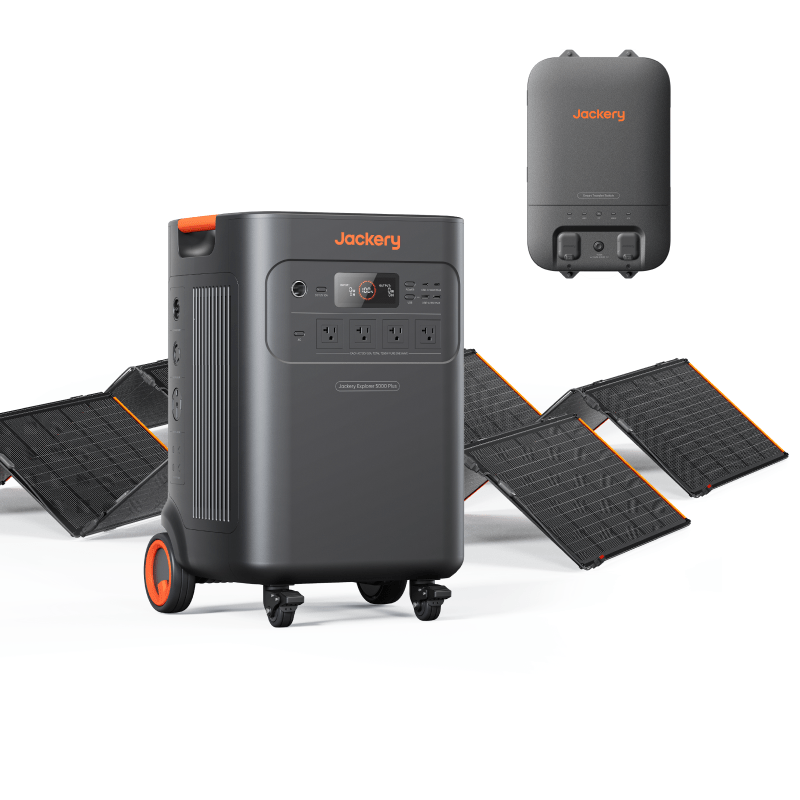

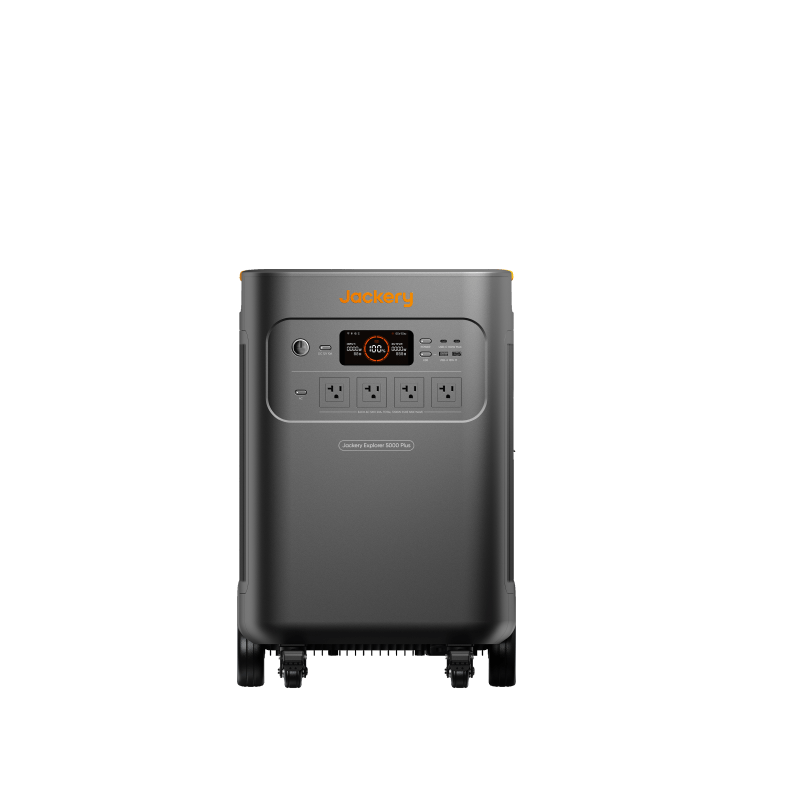

The Jackery Solar Generator 5000 Plus is a whole-home backup system for homesteaders who need real power when the grid goes down. The Explorer 5000 Plus starts at 5,040Wh and scales to 60kWh by adding Battery Pack 5000 Plus units via the DC Expansion Port. With 7,200W of rated AC output and true dual-voltage 120V/240V capability from a single unit, it runs high-draw loads including a 5-ton central AC unit, well pumps, and shop equipment. LiFePO4 batteries with a 4,000-cycle rating mean this investment lasts over a decade of daily use.
Solar Generator 5000 Plus Key Features
- 7,200W rated AC output (14,400W surge): Four NEMA 5-20 outlets at 120V plus one NEMA L14-30R/14-50 outlet at 120V/240V. Runs 5-ton central air (7,200W load), well pumps, and most household circuits simultaneously. True dual voltage from one unit.
- Expandable to 60kWh: Each Battery Pack 5000 Plus unit adds 5,040Wh via the DC Expansion Port (80.5V-126V, 41A Max). Reach up to 60kWh of total storage for multi-day backup without grid input.

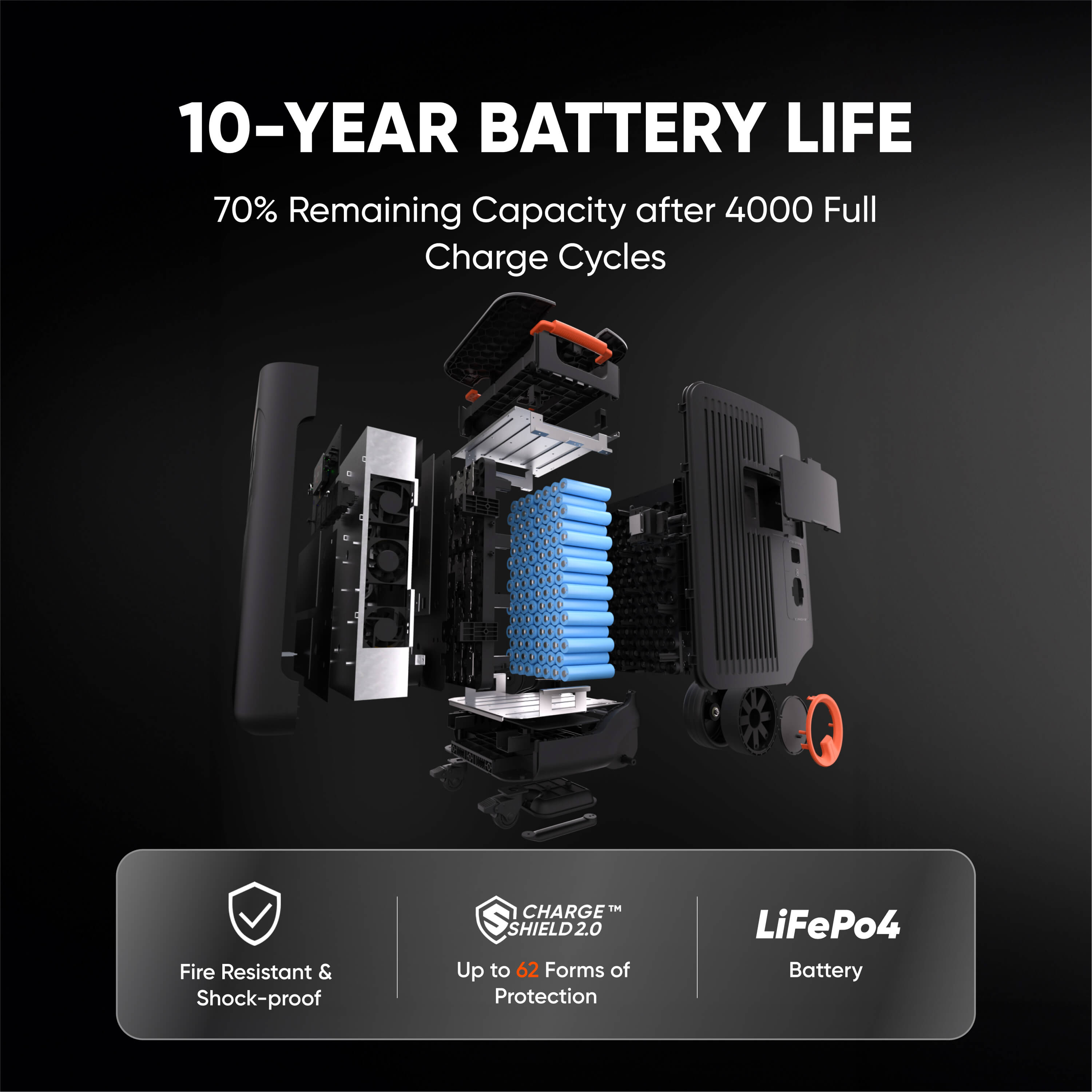

- LiFePO4 battery, 4,000-cycle rated: 11-year lifespan at one cycle per day. LiFePO4 is more thermally stable than NMC chemistry, maintains performance in temperature extremes, and does not carry the same thermal runaway risk.
- 4,000W max solar input: High-PV MC4 input accepts 135V-450V at 15A. Bundled SolarSaga 500X panels are IP68-rated at 500W each. Full recharge from two panels in 6.5-8.5 hours of direct sun. Max solar input eliminates the need for a daisy-chained recharge cycle.

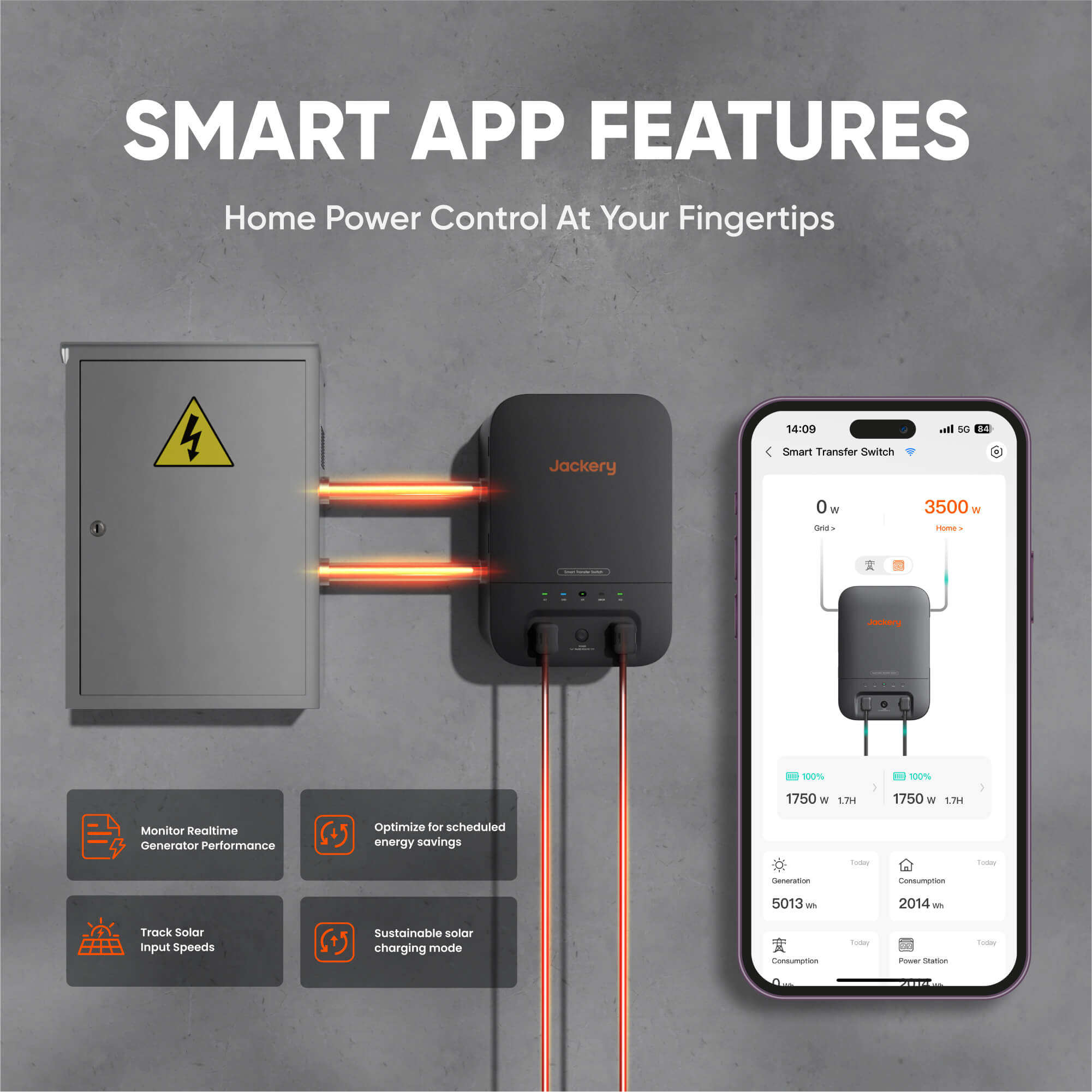

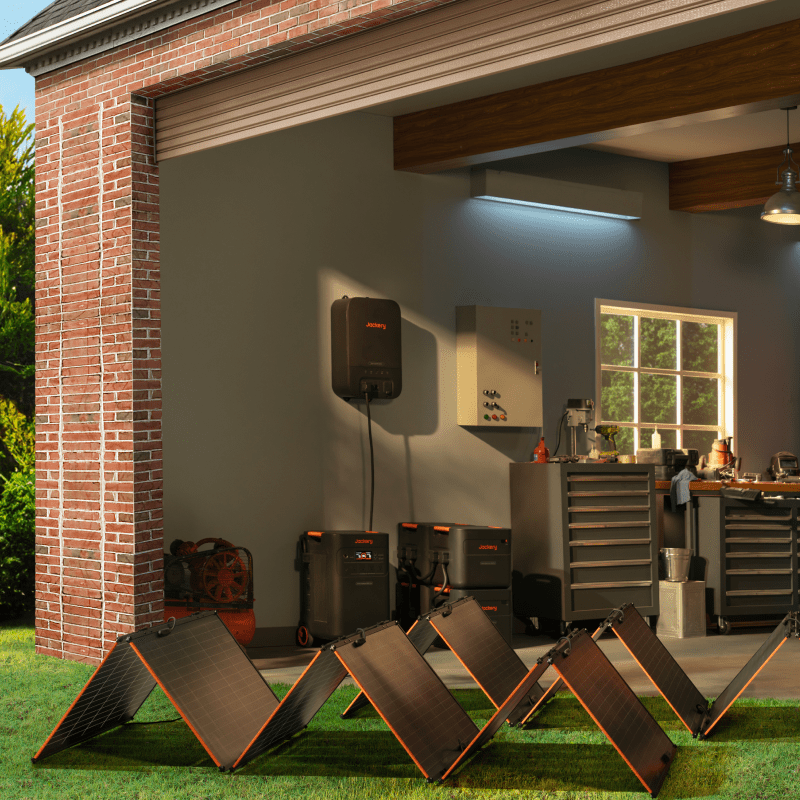

- Smart Transfer Switch support: The AC Expansion Port (240V, 30A, 7,200W) connects to a Jackery Smart Transfer Switch covering up to 12 home circuits. Switchover in less than 20ms in backup mode, 0ms in online UPS mode.
- Online UPS with 0ms switchover: In online mode, output never interrupts. Protects sensitive electronics, NAS drives, medical equipment, and refrigeration from grid fluctuations.
- Quiet operation: Runs at approximately 30 dB. A standard gas generator runs at 65-75 dB. This unit does not require fuel, produces no exhaust, and can operate indoors.
Specifications
| Capacity | 5,040 Wh (45Ah / 112V DC), expandable to 60kWh |
| Battery Type | LiFePO4 |
| Cycle Life | 4,000 cycles to 70%+; 11-year lifespan |
| Weight | 134.5 lbs (61 kg) |
| Dimensions (Explorer 5000 Plus) | 16.5 x 15.5 x 25 in |
| AC Output | 4x NEMA 5-20 (120V, 20A, 2,400W each); 1x NEMA L14-30R/14-50 (120V/240V, 30A, 7,200W max) |
| Total AC Output | 7,200W rated / 14,400W surge |
| USB-C Output | 2x 100W max |
| USB-A Output | 2x 18W max |
| Car Output | 12V/10A |
| High-PV Input (MC4) | 135V-450V, 15A Max |
| Low-PV Input | 2x DC 8mm, 16V-60V, up to 1,200W |
| AC Input (Charge) | 120V, 15A |
| Bypass AC | 120V 12A / 240V 16.7A |
| AC Expansion Port | 240V, 30A, 7,200W (Smart Transfer Switch) |
| DC Expansion Port | 80.5V-126V, 41A Max (Battery Pack 5000 Plus) |
| AC Charge Time | 3.5 hours |
| Solar Charge Time | 6.5-8.5 hours (with 2x SolarSaga 500X) |
| Max Solar Input | 4,000W |
| UPS Mode | Online: 0ms / Backup: less than 20ms |
| Noise Level | ~30 dB |
| Warranty | 5 Years |
SolarSaga 500X Panel Specs
| Wattage | 500W per panel |
| Weight | 22.05 lbs per panel |
| IP Rating | IP68 |
| Folded Dimensions | 39.21 x 20.71 x 3.82 in |
What's Included

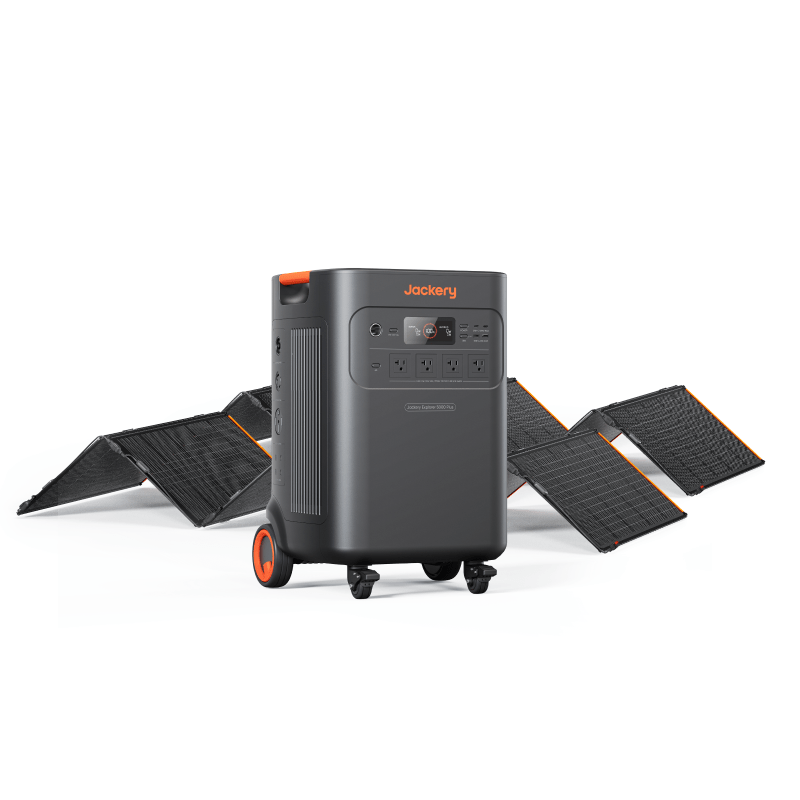

- Jackery Explorer 5000 Plus x1
- SolarSaga 500X Solar Panel x2
- AC Charging Cable x1
- MC4 Wrench x1
Expansion Options

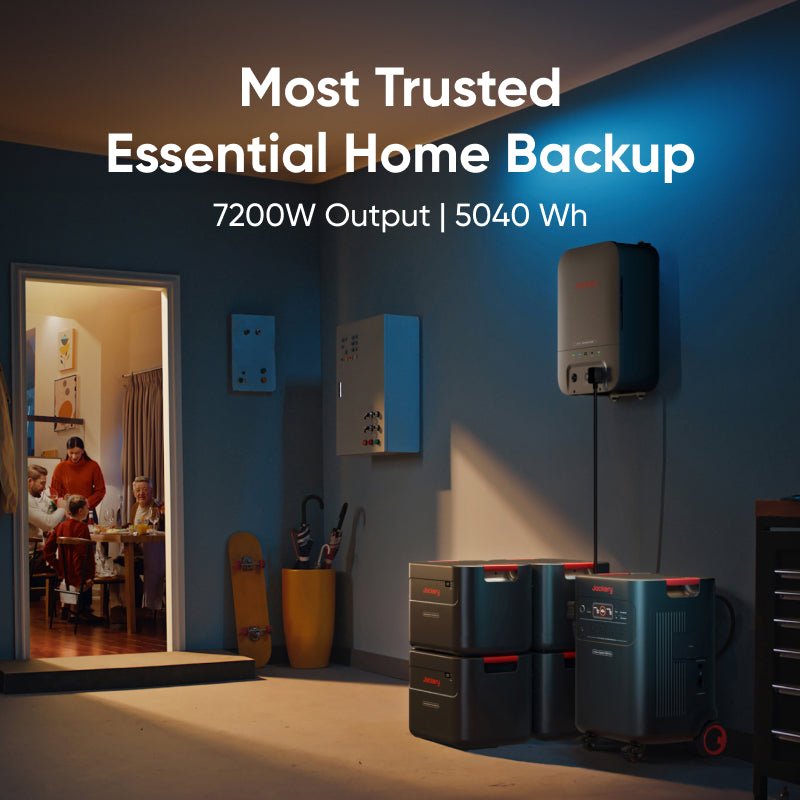

Add Jackery Battery Pack 5000 Plus units via the DC Expansion Port to increase total storage capacity. Each Battery Pack 5000 Plus adds 5,040Wh. The Explorer 5000 Plus supports expansion to a maximum of 60kWh. Connect the Jackery Smart Transfer Switch via the AC Expansion Port to integrate automatic backup coverage for up to 12 home circuits.
