Renogy 11.52kWh Power Kit | LiFePO4 Batteries, 3000W Inverter
🚚 Free Shipping to contiguous US • 🔁 30-Day Returns • 💰 Price Match Guarantee • 🔒 Secure Checkout
🛡 Warranty: Manufacturer warranty included. Coverage varies by product — see product description below for full warranty details.
This kit is built around lithium iron phosphate batteries - a meaningful difference from lead-acid-based systems at similar price points. LiFePO4 cells tolerate deep cycling, deliver more usable capacity per pound, and can realistically last 10 to 15 years under daily use. The 11.52kWh base configuration runs on four 200W panels and three 300Ah batteries at 12V, with a 3000W inverter handling AC loads. It works in a caravan or van where weight matters, and it scales cleanly in a cabin installation where it may eventually need to hold more. The kit ships without cables, fuses, or mounting hardware - factor that into your total cost before ordering.
Renogy 11.52kWh Power Kit Key Features
- Three 12V 300Ah LiFePO4 batteries provide 11.52kWh of capacity with 5,000-cycle life at 80% DOD - roughly 10x the cycle life of a comparable AGM bank
- Expandable to 61.44kWh by adding batteries in series and parallel configurations, using the same inverter and charge controller
- Rover 60A MPPT charge controller tracks at 99% efficiency with 98% conversion efficiency - minimal losses between panels and battery bank
- 3000W pure sine wave inverter handles continuous loads with a 6000W peak for motor starts; includes GFCI outlets and a USB port
- Two panel variants available: standard N-Type 200W panels or ShadowFlux 200W panels (better performance in partial shade)
- Two battery variants: Core Mini (compact, 55.1 lbs, 4S4P expandable) or Core Series (self-heating, IP65 terminal protection)
- 500A battery monitor with shunt included, accurate to 1%
- 12V system voltage compatible with a wide range of DC appliances and vehicle loads
Specifications
| Solar Panels - 200W (choose at checkout) | |
|---|---|
| Total Array Wattage | 800W (4 x 200W) |
| ShadowFlux Efficiency | 20.7% | IP67 | Anti-shading |
| ShadowFlux Voc / Vmp | 36.5V / 31.3V |
| ShadowFlux Isc / Imp | 6.86A / 6.38A |
| ShadowFlux Dimensions | 49.69 x 30.08 x 1.18 in / 23.83 lbs |
| Battery Bank - 12V 300Ah LiFePO4 x3 (choose at checkout) | |
| Total Capacity | 11.52kWh |
| Chemistry | LiFePO4 |
| Cycle Life | 5,000 cycles at 80% DOD |
| Nominal Voltage | 12.8V per battery |
| Voltage Range | 10V - 14.8V |
| Max Charge / Discharge | 150A / 200A |
| Peak Discharge (10s) | 380A |
| Core Mini Dimensions | 15.12 x 7.64 x 9.96 in / 55.1 lbs |
| Low-Temp Protection | Yes (both variants) |
| Core Series Self-Heating | Yes - 2x faster warm-up vs standard |
| Expandability | Up to 61.44kWh (4S4P) |
| Rover 60A MPPT Charge Controller | |
| MPPT Tracking / Conversion | 99% / 98% |
| Max Charge Current | 60A |
| 3000W 12V Pure Sine Wave Inverter | |
| Continuous / Peak Output | 3000W / 6000W |
| AC Output | 120V, 60Hz |
| AC Outlets | 3 GFCI | USB 5V/2.1A |
| Dimensions | 17.8 x 8.6 x 4 in / 11.7 lbs |
| Battery Monitor | |
| Shunt / Accuracy | 500A / 1% |
What's Included
This kit covers the core power components. Cables, fuses, and mounting hardware are not included. Budget for those before installation day.

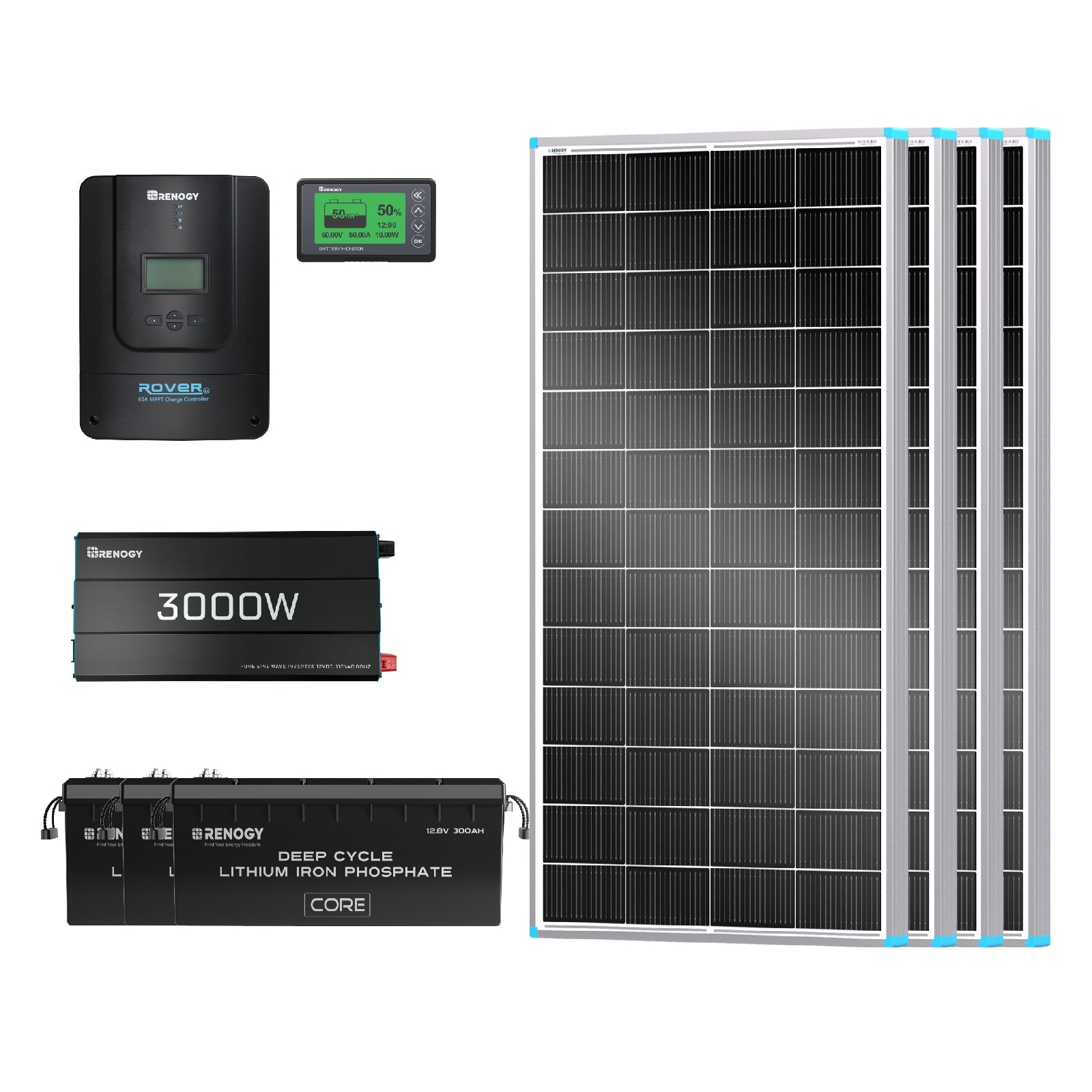

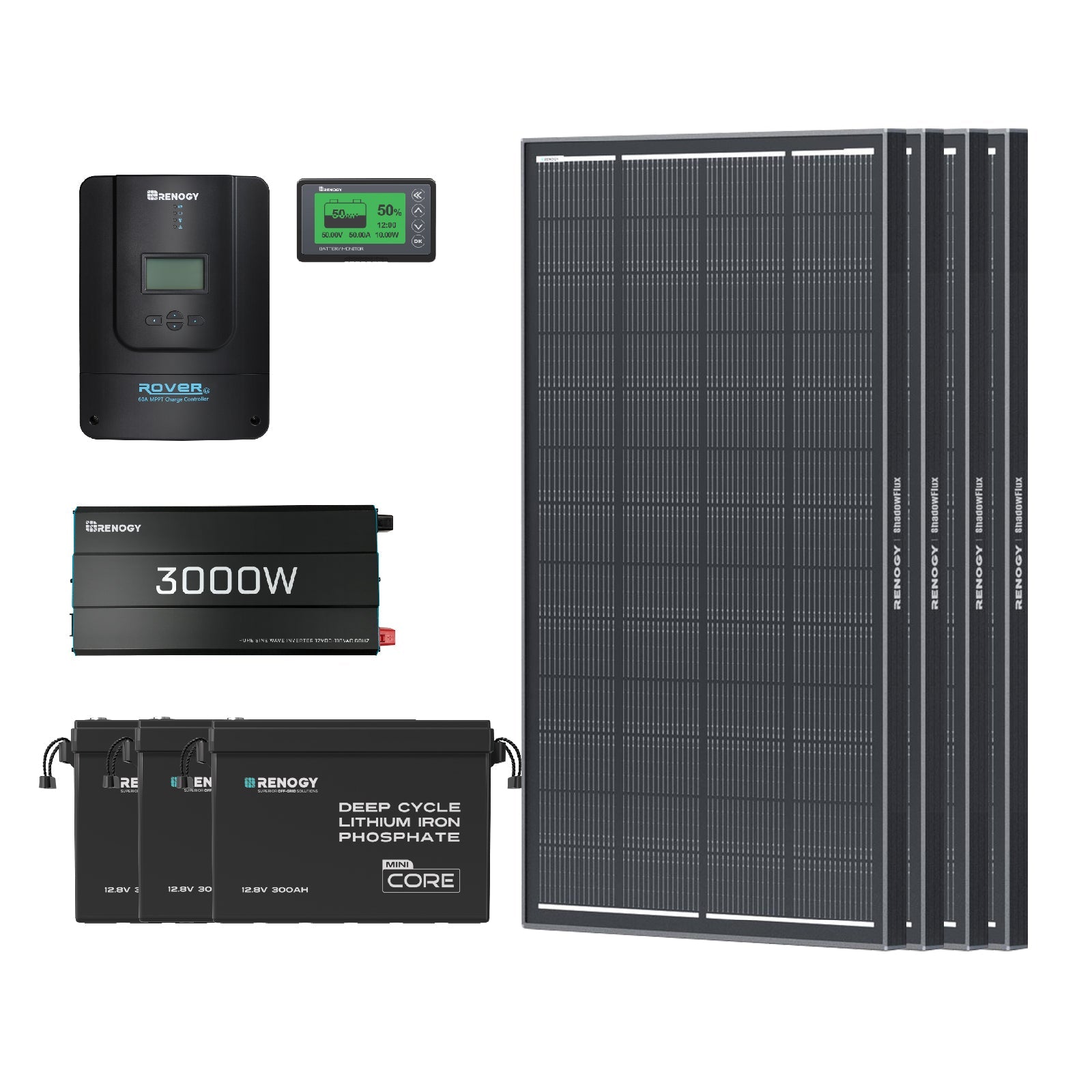

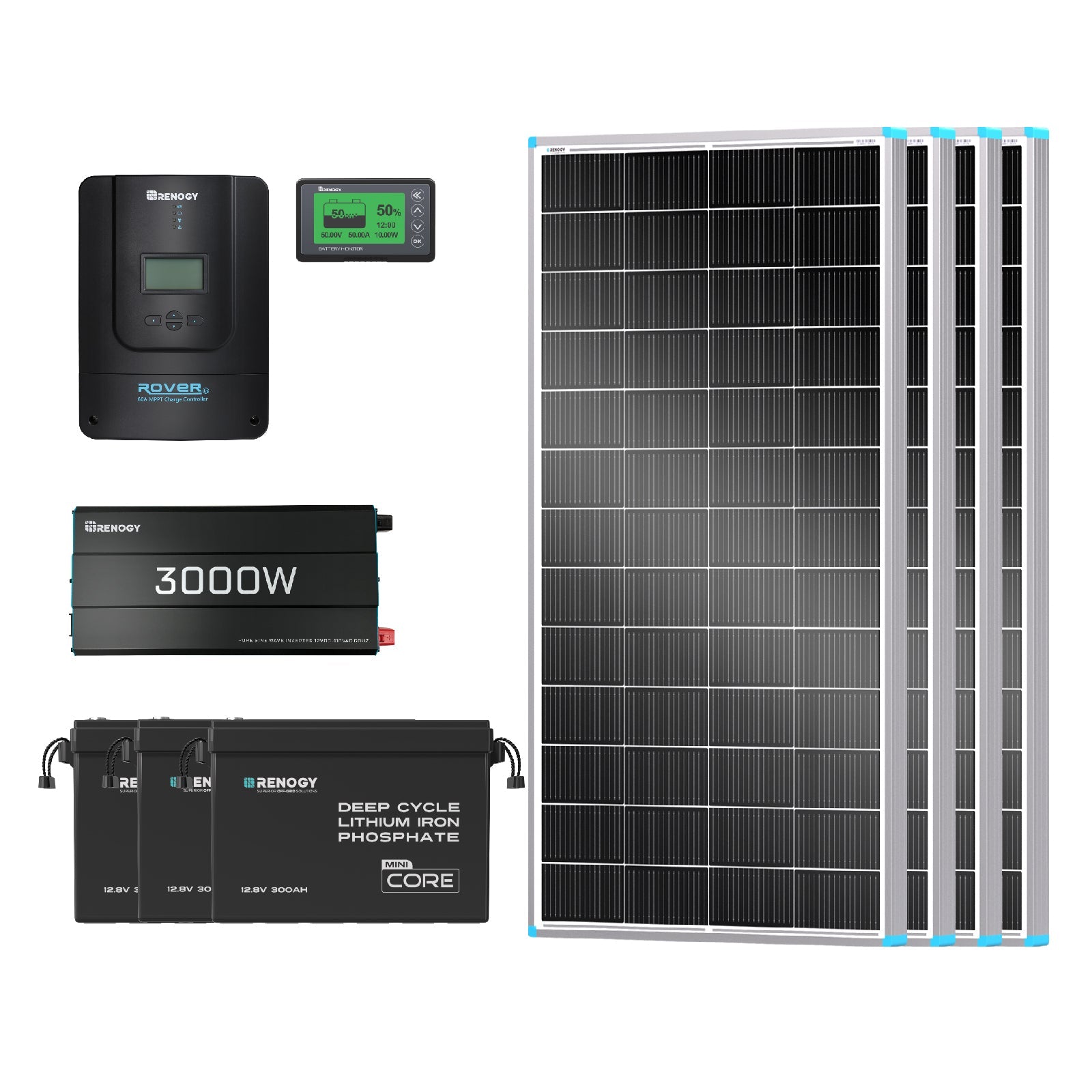

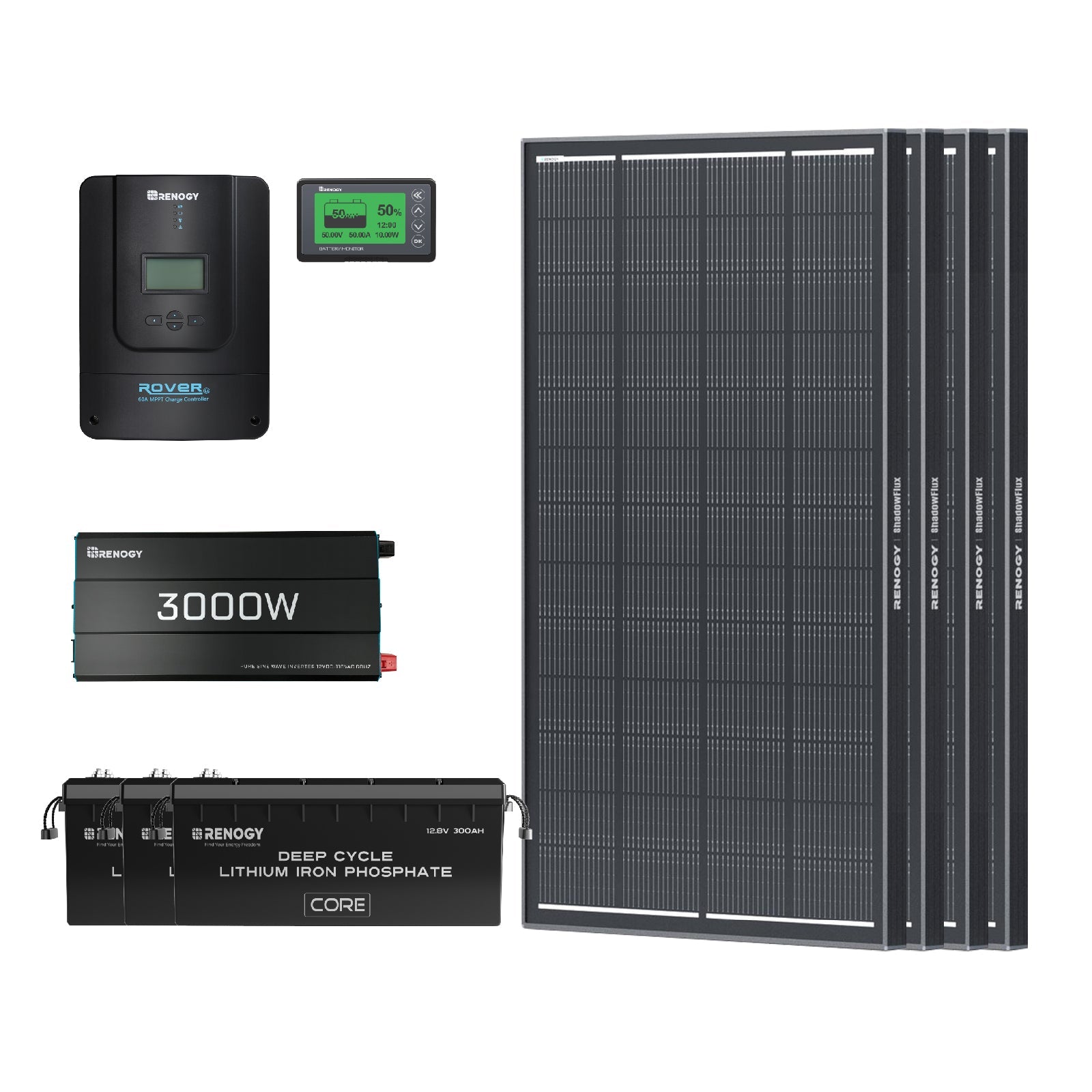

- 200W Solar Panel x4 (N-Type or ShadowFlux - choose at checkout)

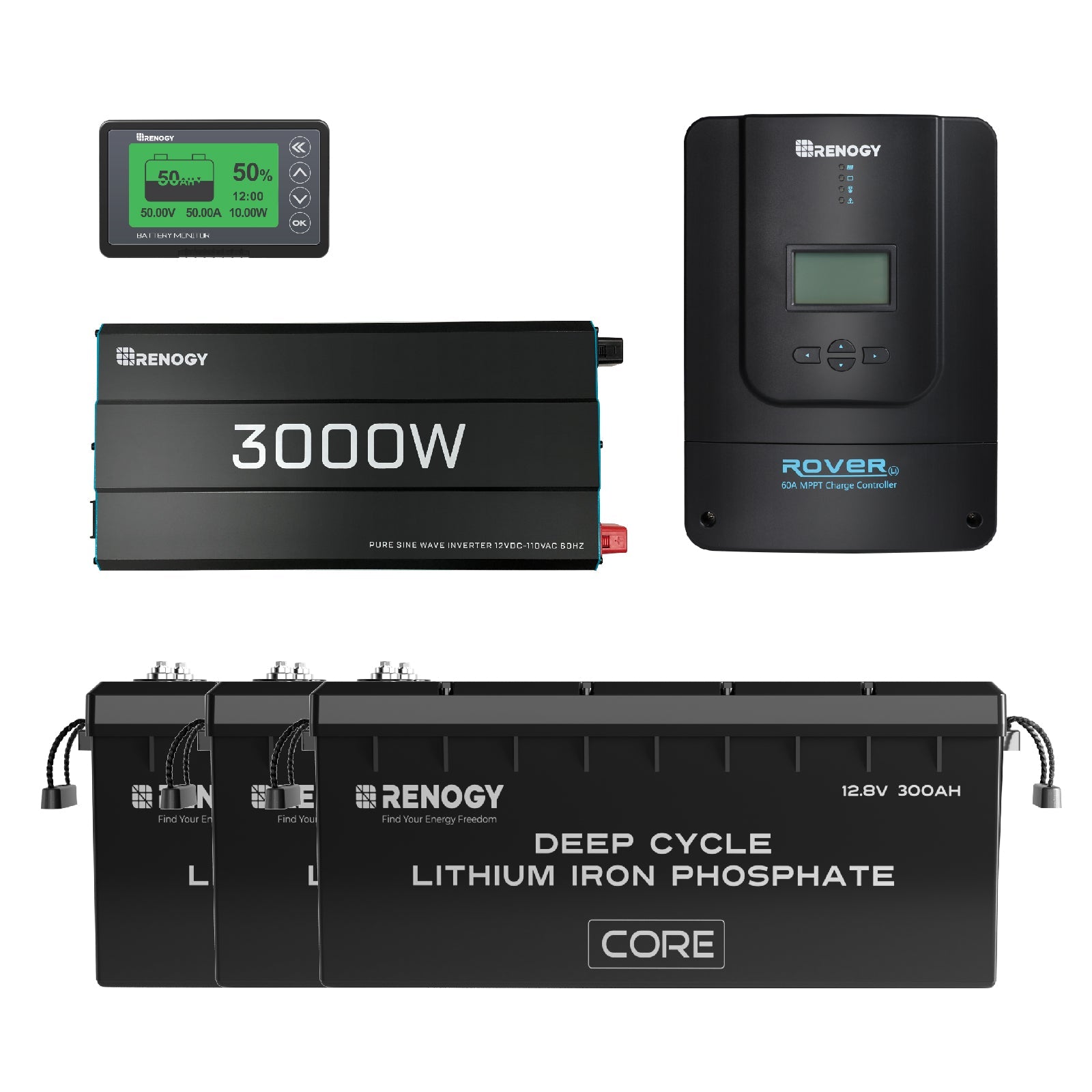

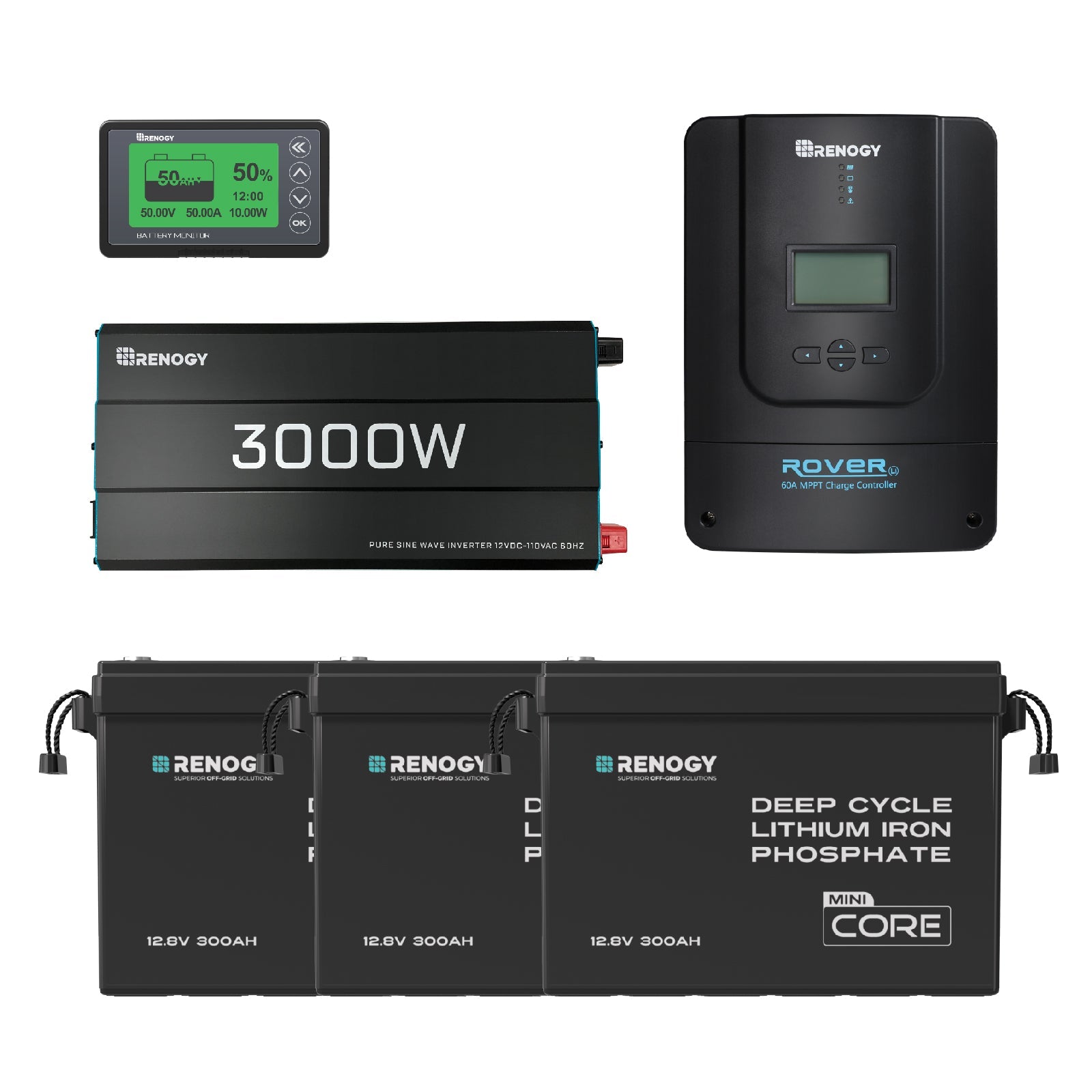

- 12V 300Ah LiFePO4 Battery x3 (Core Mini or Core Series - choose at checkout)
- 3000W 12V Pure Sine Wave Inverter x1
- Rover 60A MPPT Charge Controller x1
- 500A Battery Monitor with Shunt x1
Not included: DC and AC cables, inline fuses, breakers, mounting rails, roof brackets, grounding hardware. These are required for a complete installation.
