If you need serious battery capacity without a serious footprint, this kit is built around three Core Mini 300Ah LiFePO4 batteries stacked to 11.52kWh total. That is enough storage to run a van, camper, or off-grid cabin through the night and into the next afternoon. Add ShadowFlux panels and you get a charge controller and inverter that are ready to work the moment power matters most. This kit ships without cables, fuses, or brackets - pick your variant, then spec your wiring to your build.
Renogy 11.52kWh Power Kit Key Features
- 11.52kWh of LiFePO4 storage across three Core Mini 300Ah batteries - expandable to 61.44kWh in a 4S4P configuration
- ShadowFlux panels (400W or 800W array) use anti-shading cell architecture that keeps charging even when part of the panel is blocked - the only rigid panel with this design
- Rover Li 60A MPPT handles up to 800W at 12V and scales to 3200W at 48V, with 140VDC max input and 4AWG terminals
- 2000W pure sine wave inverter runs microwaves, CPAP machines, and coffee makers, with a 4000W peak for startup surges
- 500A battery monitor with shunt tracks at 1% accuracy and saves data automatically on power-off
- Core Mini batteries: 5,000 cycles at 80% DOD, low-temp protection, 200A continuous discharge, 380A peak for 10 seconds
- Three AC sockets plus a terminal block, remote control capable
Specifications
| ShadowFlux 200W Panel (per panel) | |
|---|---|
| Max Power / Efficiency | 200W / 20.7% |
| Voc / Vmp | 36.5V / 31.3V |
| Isc / Imp | 6.86A / 6.38A |
| Weather Rating / Anti-Shading | IP67 / Yes |
| Dimensions / Weight | 49.69 x 30.08 x 1.18 in / 23.83 lbs |
| Core Mini 300Ah LiFePO4 Battery (per unit) | |
| Nominal Voltage / Capacity | 12.8V / 300Ah |
| Total Storage (x3) | 11.52kWh |
| Voltage Range | 10V to 14.8V |
| Max Charge / Discharge | 150A / 200A |
| Peak Discharge | 380A @ 10s |
| Cycle Life | 5,000 cycles @ 80% DOD |
| Dimensions / Weight | 15.12 x 7.64 x 9.96 in / 55.1 lbs |
| Low-Temp Protection / Expandable | Yes / up to 61.44kWh (4S4P) |
| Rover Li 60A MPPT Charge Controller | |
| Max PV (12/24/36/48V) | 800W / 1600W / 2400W / 3200W |
| Max Input Voltage / Terminals | 140VDC / 4AWG |
| Operating Temp | -31°F to 113°F |
| 2000W 12V Pure Sine Wave Inverter | |
| Continuous / Peak Output | 2000W / 4000W |
| AC Output | 120V, 60Hz |
| AC Sockets / USB | 3 + 1 terminal block / 5V 2.1A |
| Dimensions / Weight | 17.8 x 8.6 x 4.0 in / 11.7 lbs |
| 500A Battery Monitor with Shunt | |
| Accuracy / Standby Draw | 1% / 1mA |

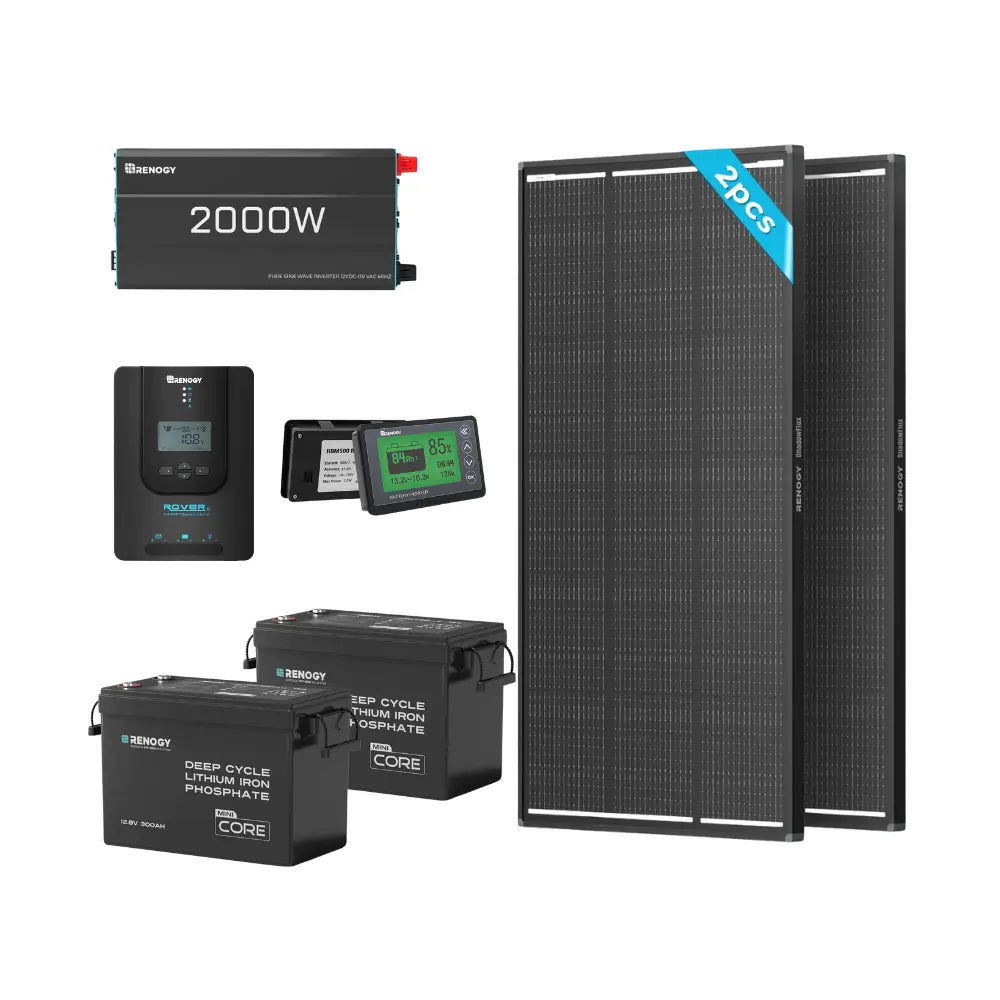

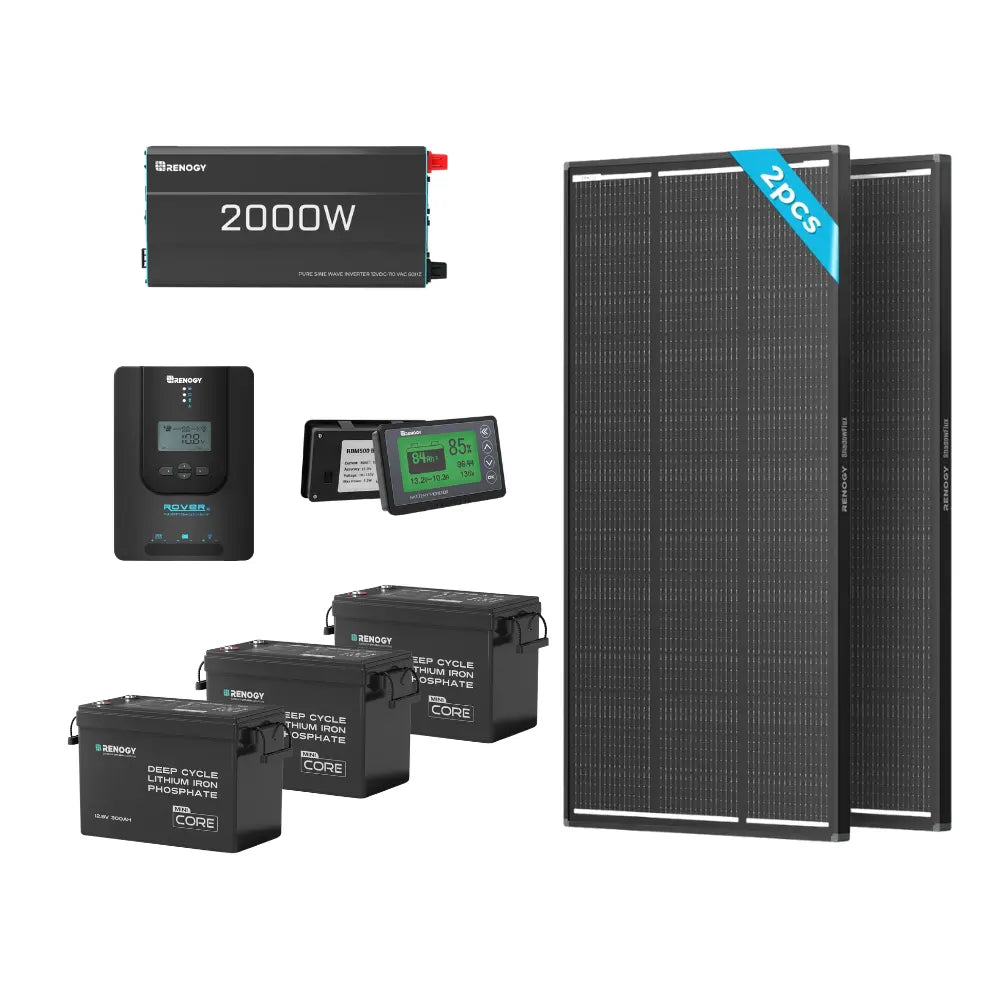

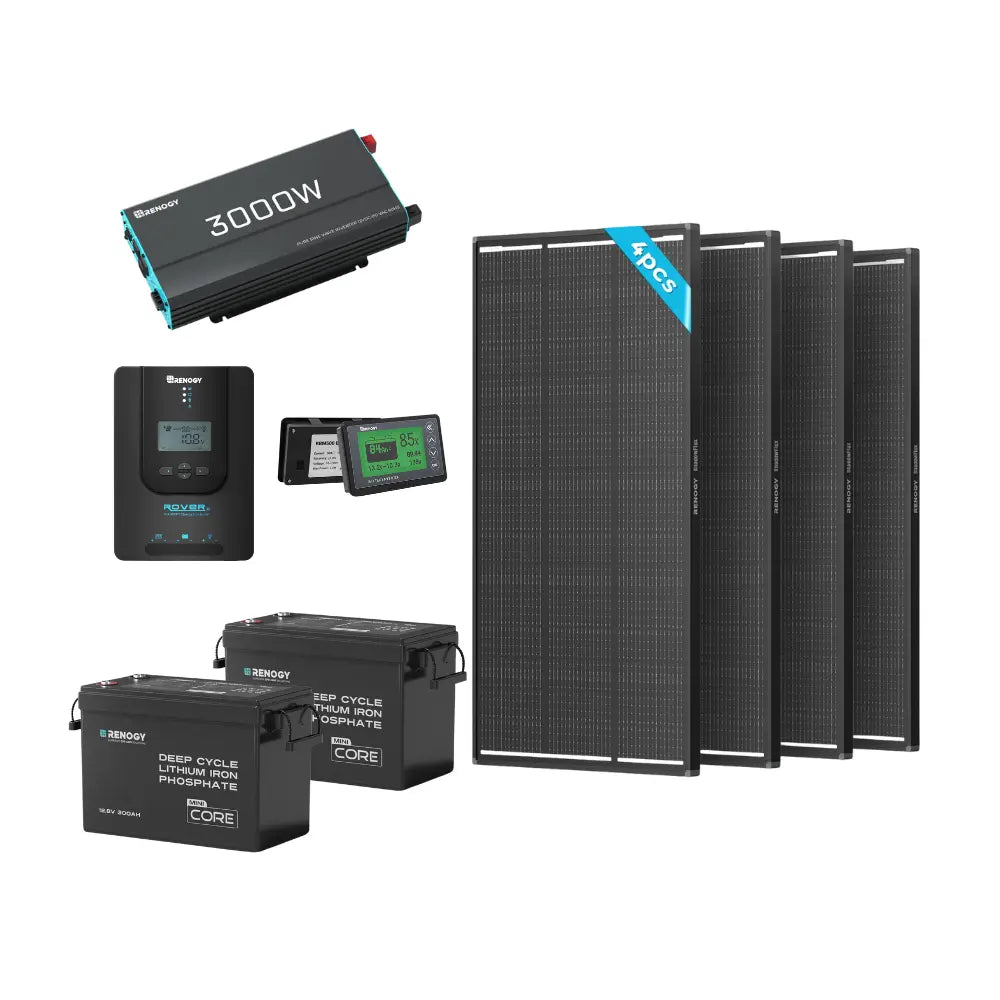

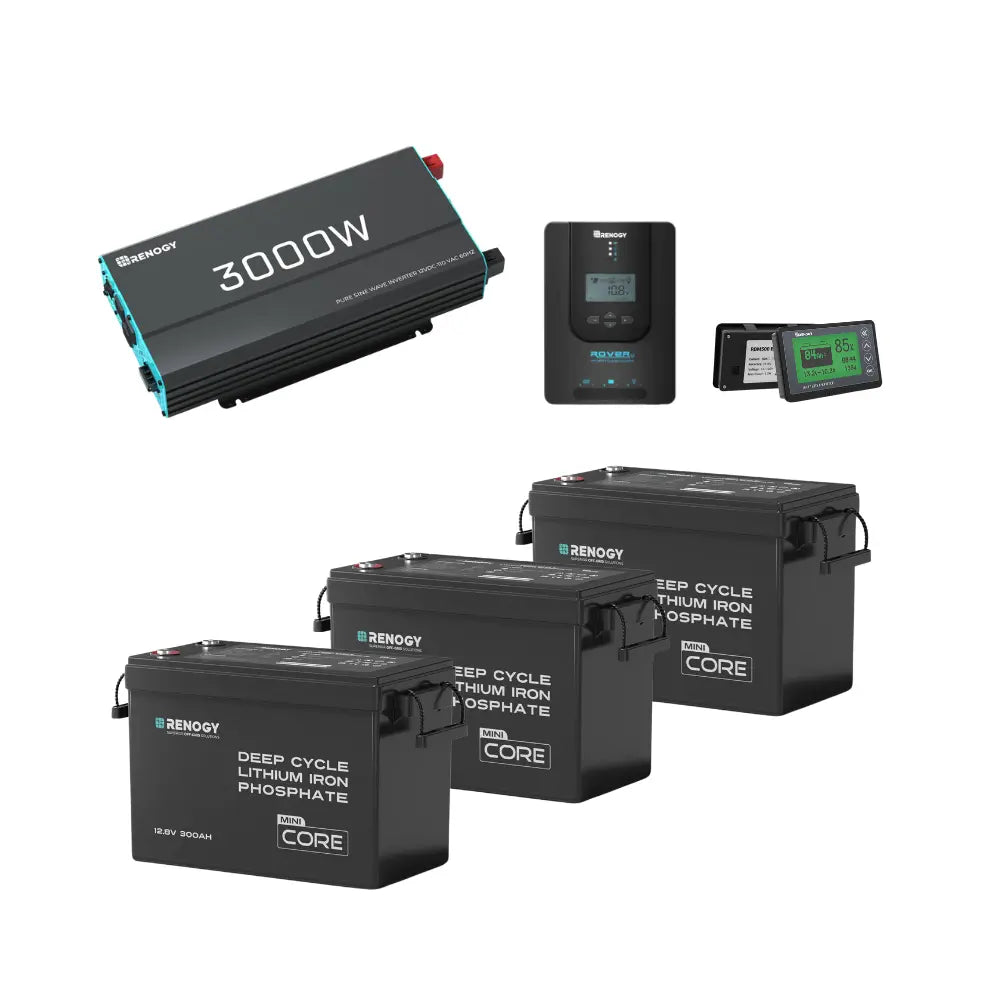

What's Included
- 200W ShadowFlux Anti-Shading Panel - 0, 2, or 4 panels (per variant)
- Core Mini 12.8V 300Ah LiFePO4 Battery x3
- Rover Li 60A MPPT Charge Controller x1
- 2000W 12V Pure Sine Wave Inverter x1
- 500A Battery Monitor with Shunt x1
Note: Core major components only. Cables, fuses, and mounting brackets are NOT included. Plan your wiring before ordering.
