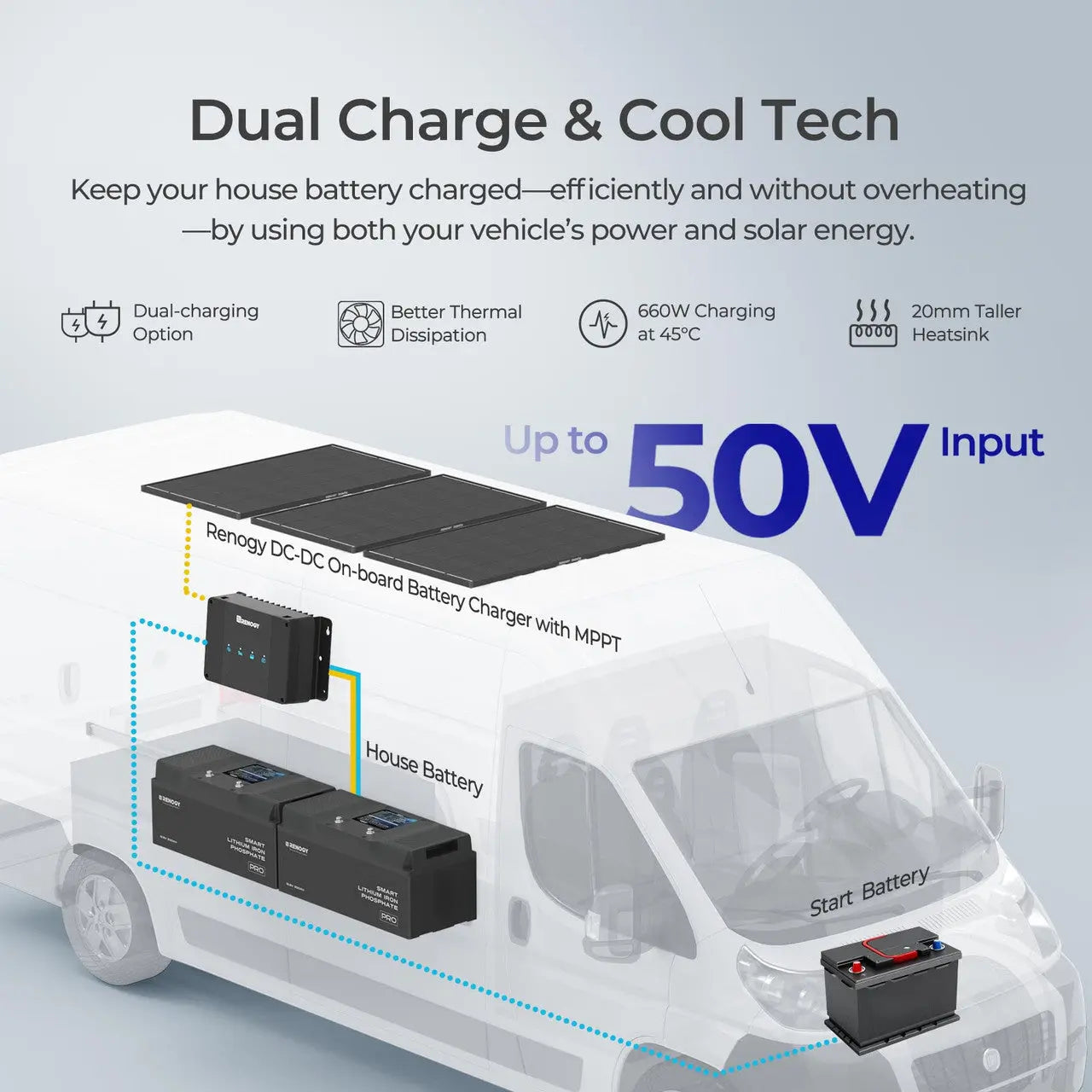

Most solar kits assume your vehicle is parked while the sun charges your batteries. This kit does not make that assumption. The DCC50S DC-DC charger pulls power from both your solar array and your vehicle alternator, so your batteries charge whether you are driving down the highway or sitting in a shaded campsite. This is a mobile-first system - designed for vans, RVs, trucks, and boats where dual-source charging is not optional, it is the whole point. The 3000W inverter and 5.12kWh of LiFePO4 storage handle the heavy end of your electrical demand once you arrive.
Renogy 600W ShadowFlux Kit Key Features
- DCC50S DC-DC charger feeds batteries from the alternator while driving AND from 600W of solar while parked - two charge sources, one unit, no extra hardware required

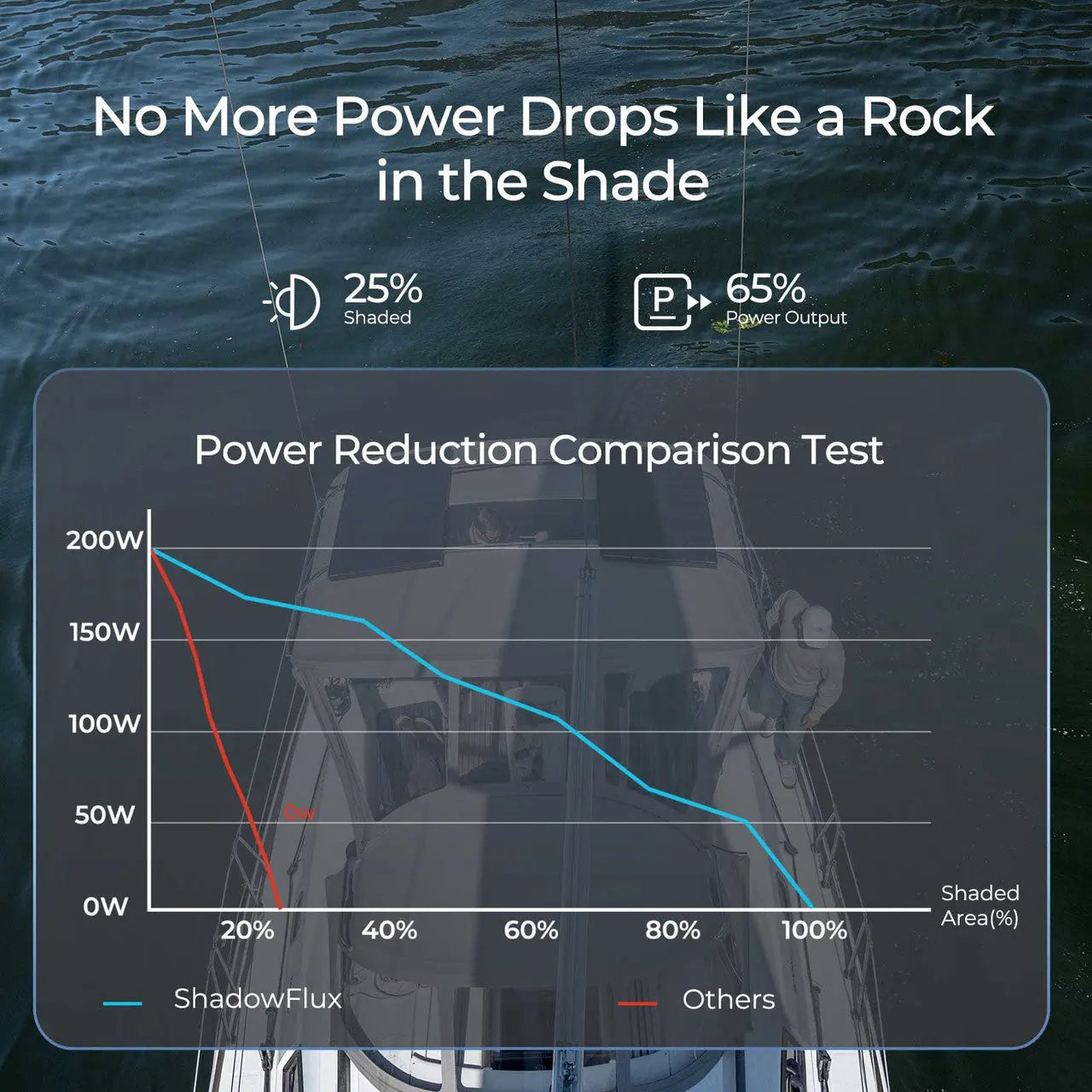

- ShadowFlux N-Type panels use anti-shading cell architecture to maintain output when trees, roof racks, or antennas cast partial shade across the array

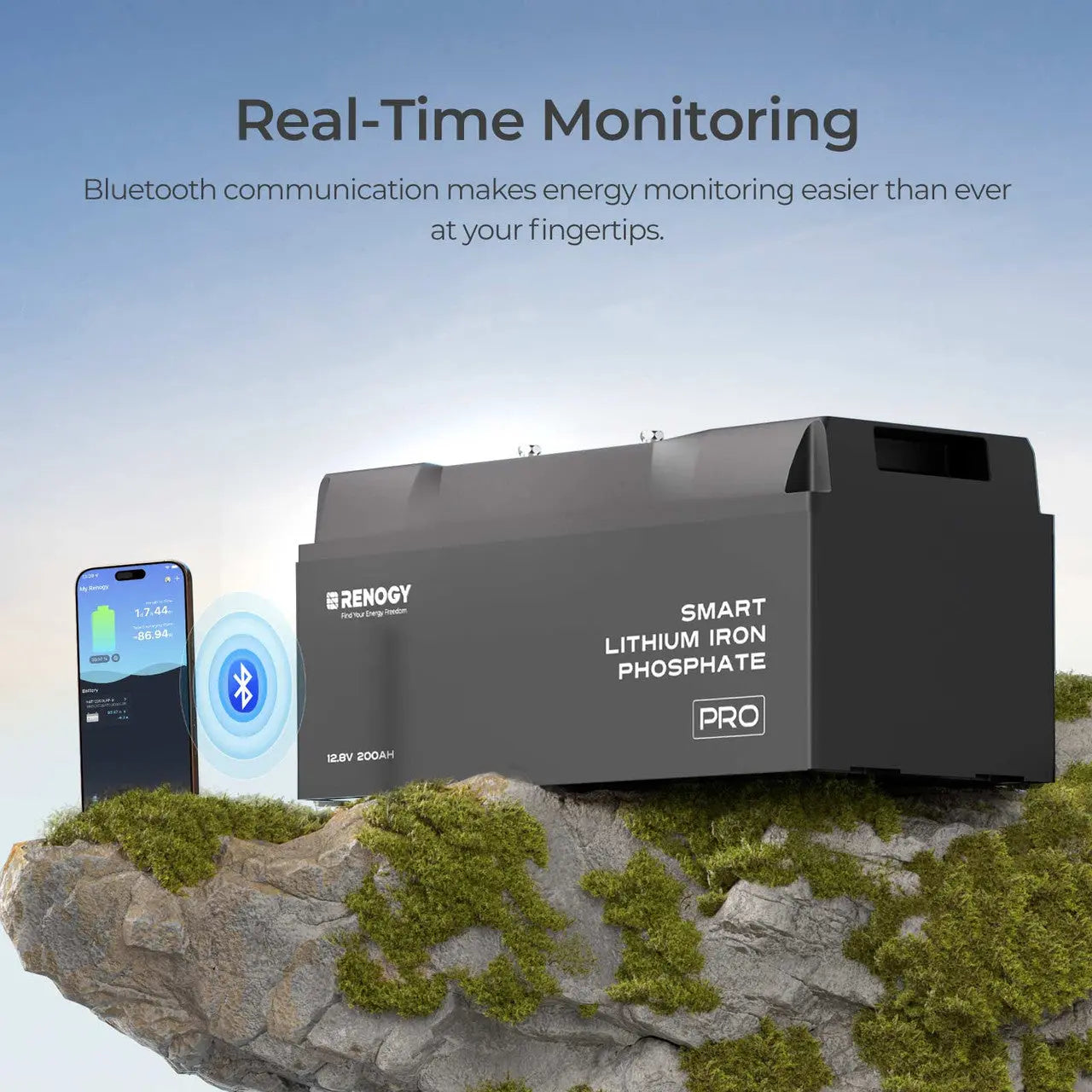

- 5.12kWh of Pro Smart LiFePO4 storage across two 200Ah batteries with Bluetooth monitoring and self-heating for cold-weather operation down to -4°F

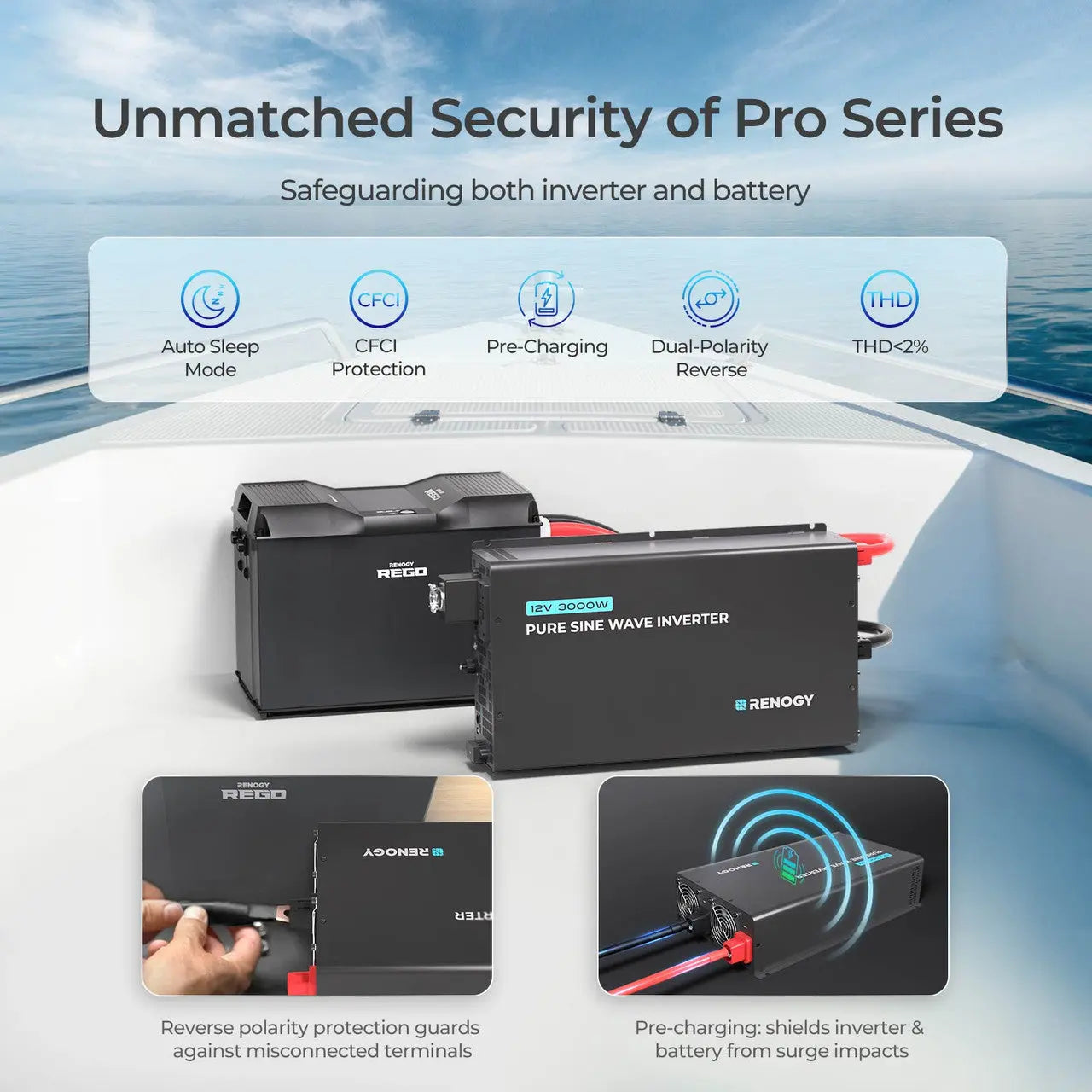

- 3000W Pro pure sine wave inverter with 6000W surge handles compressors, power tools, and kitchen appliances - EcoSleep mode cuts standby draw when loads drop
- Renogy ONE Core Bluetooth module ships with the DCC50S - monitor charging status from your phone without a separate accessory purchase
- Batteries expandable to 8 units in parallel, with 270A peak discharge and 5,000 cycle life at 80% DOD
- Z brackets for all three panels included - nothing to source separately for a standard roof or flat-surface mount
Specifications
| ShadowFlux 200W N-Type Panel (x3 = 600W total) | |
|---|---|
| Max Power / Efficiency | 200W each / 20.70% |
| Voc / Vmp | 36.5V / 31.3V |
| Isc / Imp | 6.86A / 6.38A |
| Max System Voltage | 100VDC |
| Dimensions / Weight | 49.69 x 30.08 x 1.18 in / 23.83 lbs each |
| 12V 200Ah Pro Smart LiFePO4 Battery (x2 = 5.12kWh) | |
| Capacity / Voltage Range | 200Ah / 10V to 14.8V |
| Peak Discharge | 270A @ 30s |
| Cycle Life | 5,000 cycles @ 80% DOD |
| Charge / Discharge Temp | -4°F to 131°F / -4°F to 140°F |
| Expandable | Up to 8 units parallel |
| Dimensions / Weight | 18.4 x 8.4 x 8.2 in / 50.7 lbs each |
| Features | Bluetooth, self-heating |
| DCC50S 12V 50A DC-DC Charger with MPPT | |
| System Voltage / Max Current | 12VDC / 50A |
| Battery Voltage Range | 9V to 16VDC |
| Max Solar Input | 50V / 660W @ 50A |
| Includes | Renogy ONE Core Bluetooth Module |
| Dimensions / Weight | 9.61 x 5.75 x 3.78 in / 4.10 lbs |
| 3000W 12V Pro Pure Sine Wave Inverter (EcoSleep) | |
| Continuous / Surge Output | 3000W / 6000W |
| AC Output | 120V, 60Hz |
| Input Voltage Range | 11V to 15.5VDC |
| Peak Efficiency | 90% or greater |
| Dimensions / Weight | 20.82 x 10.35 x 4.12 in / 13.2 lbs |

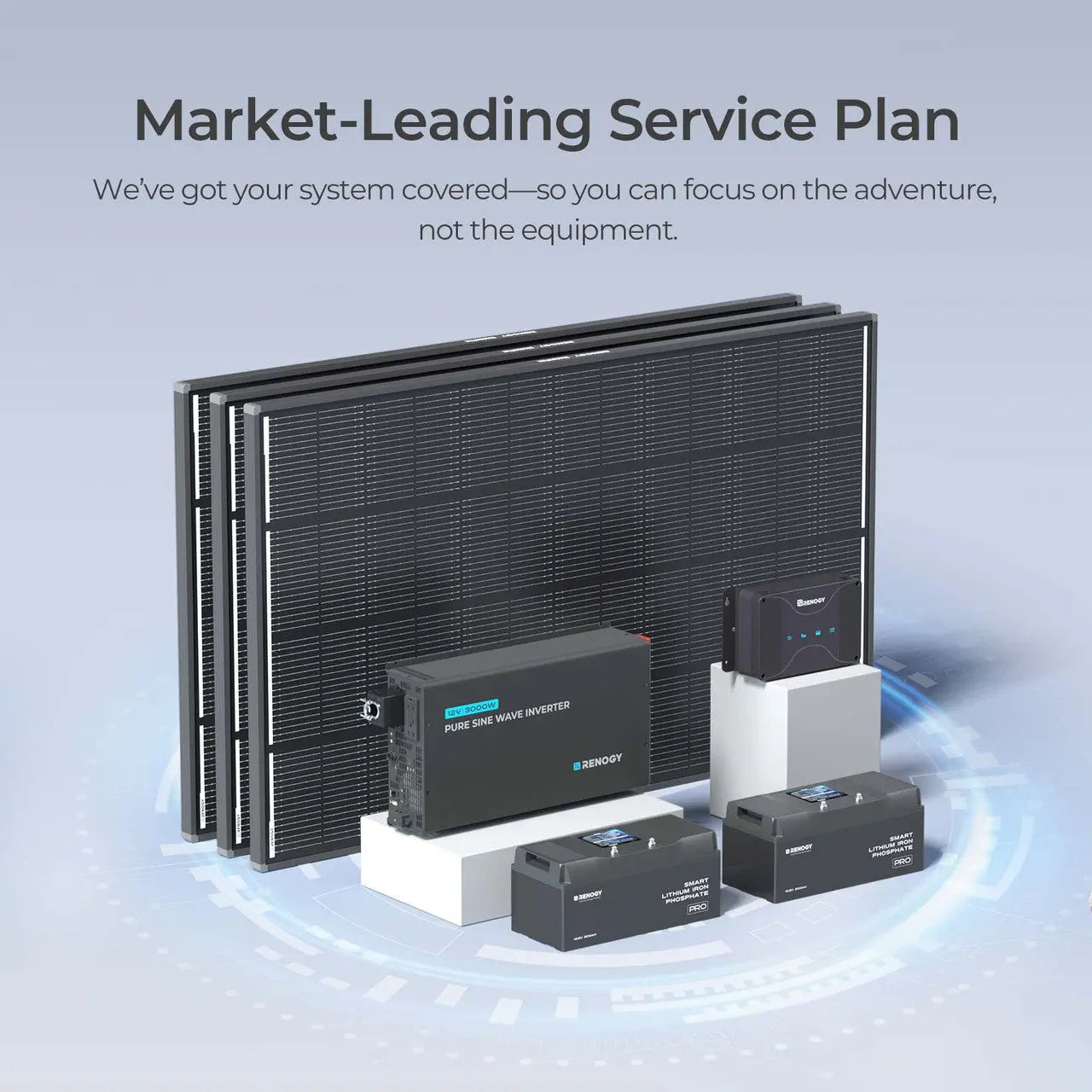

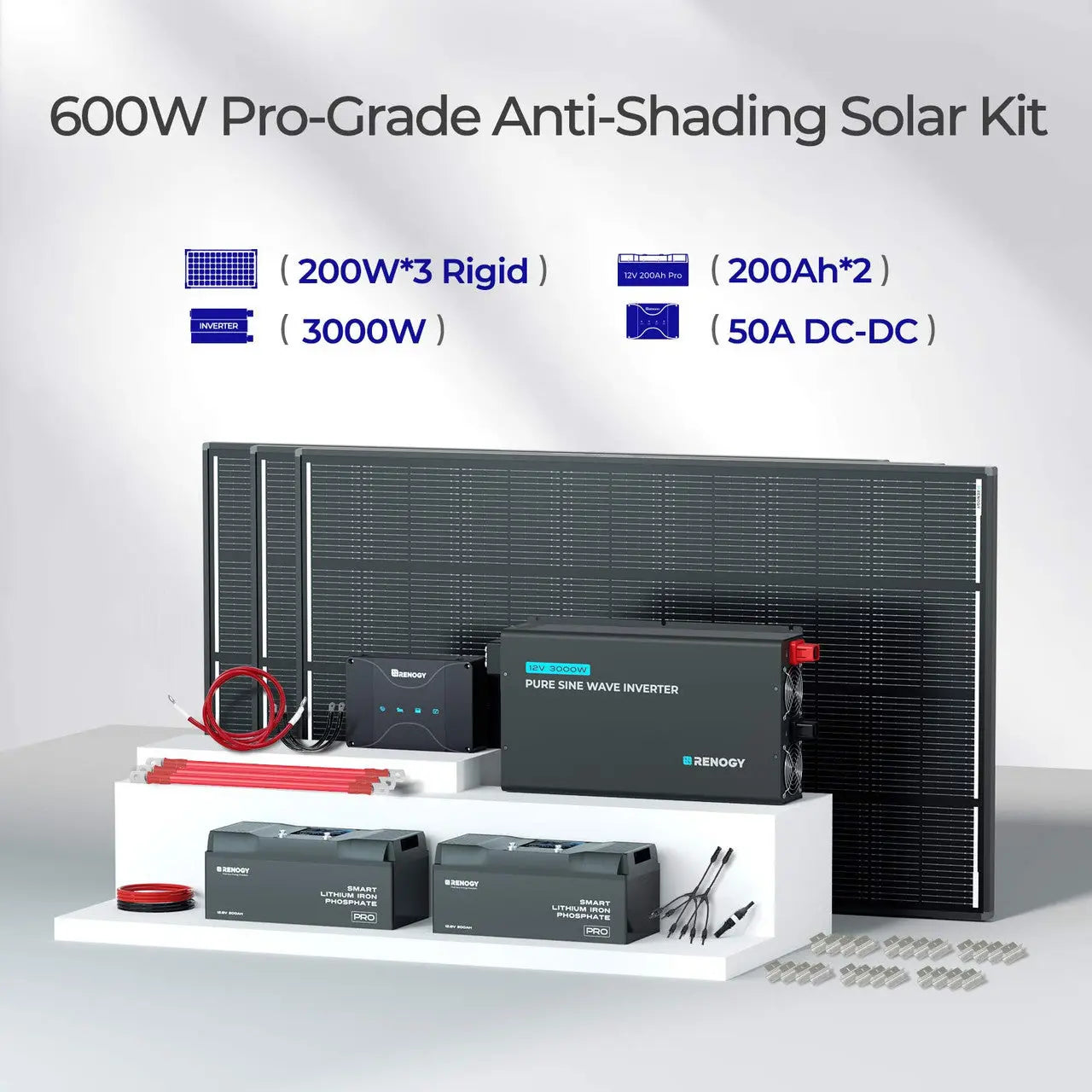

What's Included
- 200W ShadowFlux Anti-Shading N-Type Solar Panel x3
- DCC50S 12V 50A DC-DC Battery Charger with MPPT x1
- Renogy ONE Core Bluetooth Module x1
- 12V 200Ah Pro Smart LiFePO4 Battery with Bluetooth and Self-Heating x2
- 3000W 12V Pro Pure Sine Wave Inverter with EcoSleep x1
- Solar Panel Mounting Z Brackets x6
- 30A Solar Connector Waterproof In-Line Fuse Holder with Fuse x1
- 12in 1AWG Copper Battery Interconnect Cable for 5/16in Lugs x2
- Solar Connectors M Branch Parallel Adapter Cable (MMMF+FFFM Pair) x1
- Battery Inverter Cables for 3/8in Lugs x1
- 8AWG 1FT ANL Fuse Cable with Double Ring Terminals for 3/8in Lugs x2
- 4AWG 2FT ANL Fuse Cable with Double Ring Terminals for 3/8in Lugs x2
- 6AWG 5FT ANL Fuse Cable with Double Ring Terminals for 5/16in Lugs x2
