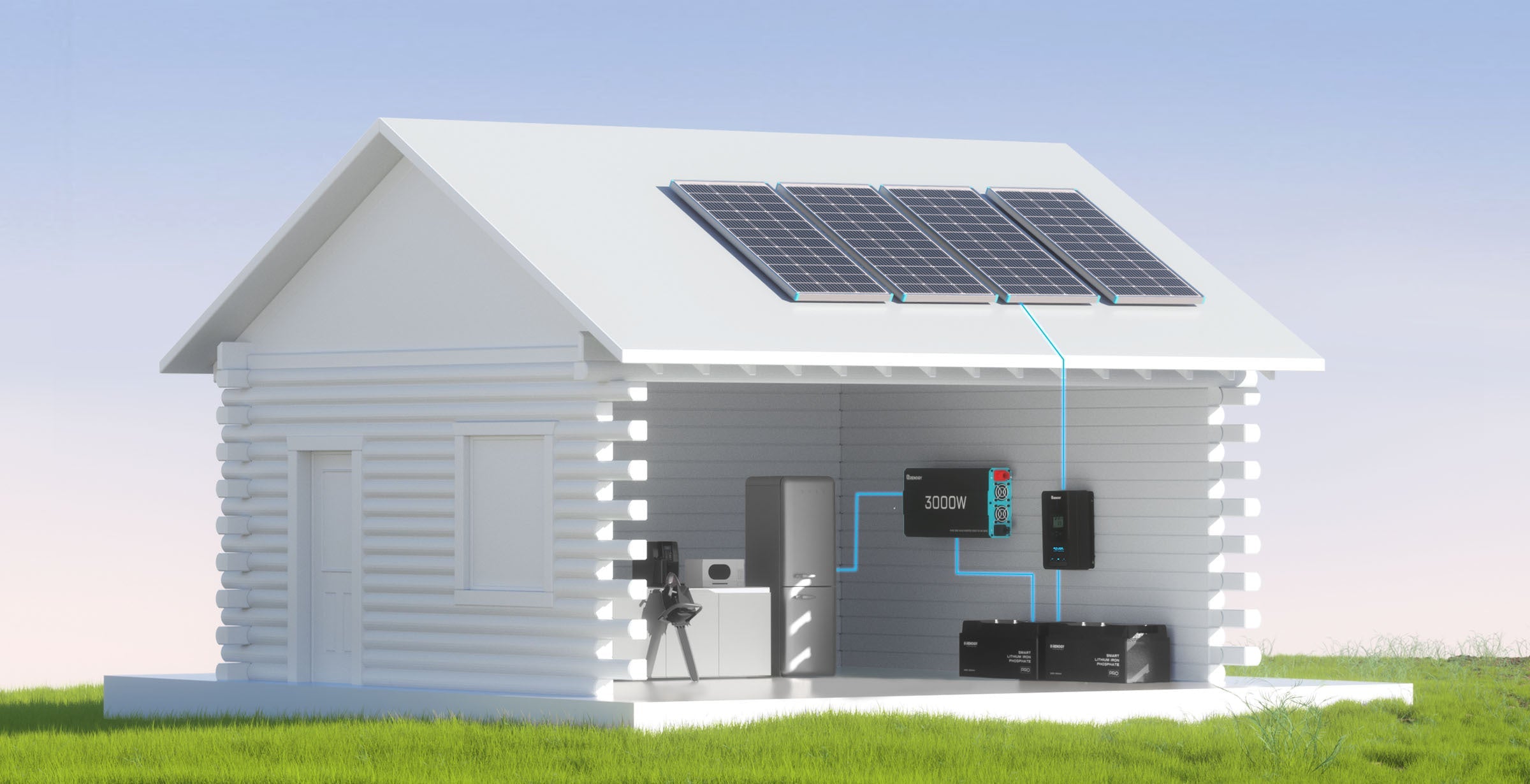

Running power to a detached garage, barn, or shop is either a long trench or a long wait for an electrician. This kit skips both. The Workshop Solution is purpose-built for outbuildings - 400W of solar on the roof, 5.12kWh of LiFePO4 in the cabinet, and a 3000W inverter ready to run lights, tools, and battery chargers without utility power. The included 500A combiner box handles multi-circuit distribution the way a workshop actually needs it: organized, protected, and expandable. This is not a van kit adapted for a shed - it is built for fixed installations from the start.
Renogy Workshop Solution Key Features
- 500A combiner box ships with the kit - simplifies wiring multiple circuits in a workshop or barn without sourcing a separate distribution panel
- 5.12kWh of Pro Smart LiFePO4 storage across two 200Ah batteries rated for 5,000 cycles at 80% DOD, with a 7-year prorated warranty - the strongest battery warranty on any kit in this lineup
- Batteries carry IP67 protection, UL certification, and self-heating down to -4°F - built to sit in an unheated shop through a real winter
- 3000W pure sine wave inverter with 6000W surge handles circular saws, compressors, and shop vacs without voltage sag or waveform distortion
- Rover LI 40A MPPT controller auto-detects 12V or 24V - lets you wire 400W of panels at either voltage depending on your cable run and battery bank configuration
- Four 100W 16BB N-Type panels with Z brackets included - mount on any roof pitch or flat surface without sourcing mounting hardware separately
- Bluetooth monitoring on both batteries lets you check state of charge from your phone anywhere on the property
Specifications
| 100W 16BB N-Type Solar Panel (x4 = 400W total) | |
|---|---|
| Max Power / Operating Temp | 100W each / -40°F to 185°F |
| Voc / Vmp | 22.79V / 19.97V |
| Isc / Imp | 5.31A / 5.01A |
| Dimensions / Weight | 34.1 x 22.8 x 1.2 in / 13.0 lbs each |
| 12V 200Ah Pro Smart LiFePO4 Battery (x2 = 5.12kWh) | |
| Nominal Voltage / Capacity | 12.8V / 200Ah |
| Voltage Range | 10V to 14.8V |
| Max Charge / Discharge | 200A / 200A |
| Peak Discharge | 270A @ 30s |
| Cycle Life | 5,000 cycles @ 80% DOD |
| Protection / Flame | IP67 / UL94 V-0 |
| Dimensions / Weight | 18.4 x 8.4 x 8.2 in / 50.7 lbs each |
| Certifications | UL, MSDS, UN38.3, FCC, CE, PSE, UKCA |
| Battery Warranty | 7-year prorated material and workmanship |
| Rover LI 40A MPPT Charge Controller | |
| Nominal Voltage | 12V / 24V Auto Recognition |
| Max PV Input Voltage | 100VDC |
| Rated Charge Current | 40A |
| Max PV Input Power | 520W (12V) / 1040W (24V) |
| 3000W 12V Pure Sine Wave Inverter | |
| Continuous / Peak Output | 3000W / 6000W |
| AC Output | 120V, 60Hz |
| AC Sockets / USB | 3 + 1 terminal block / 5V 2.1A |
| Dimensions / Weight | 18.9 x 9.0 x 4.0 in / 12.5 lbs |
| 500A Combiner Box | |
| Max Current Rating | 500A |

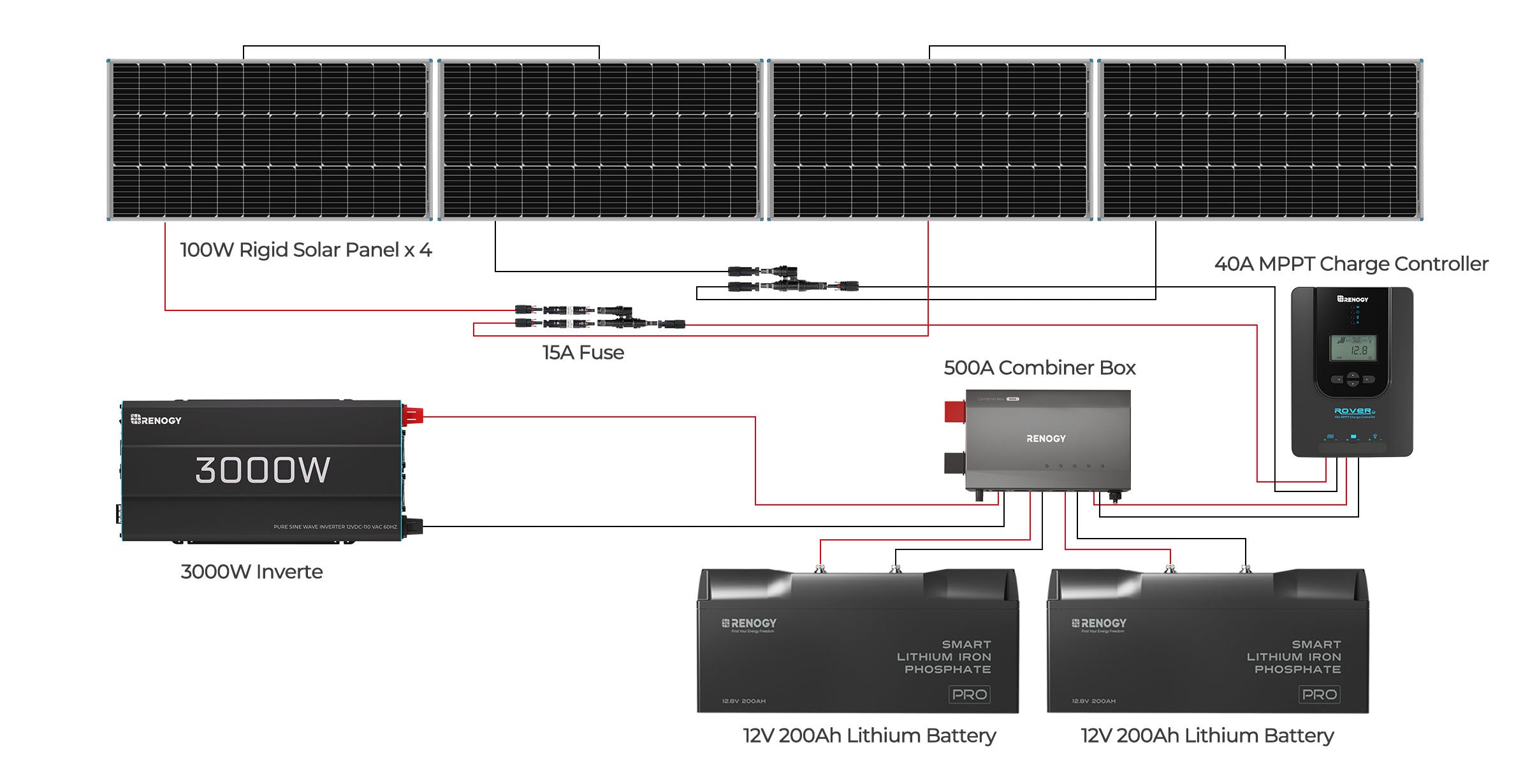

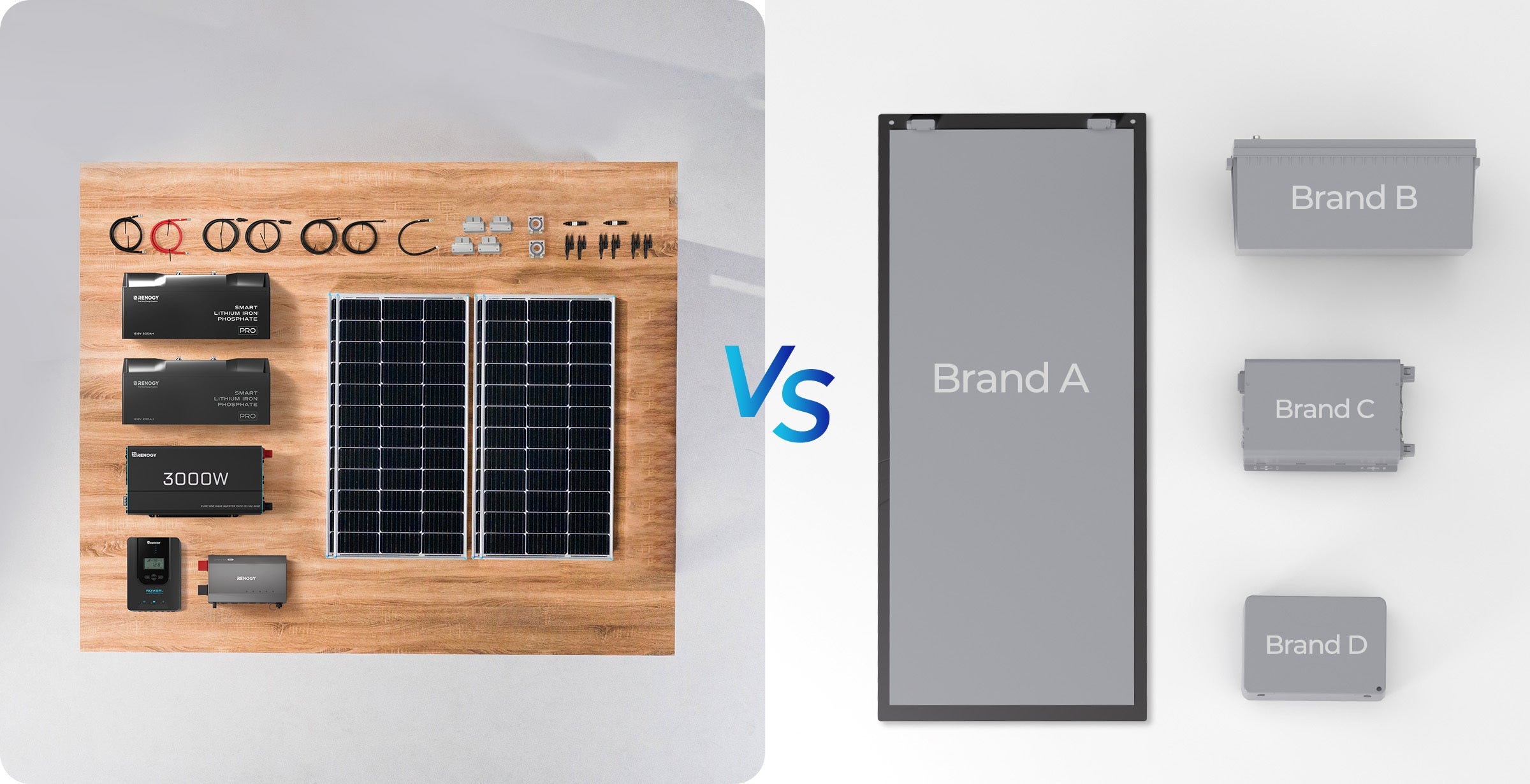

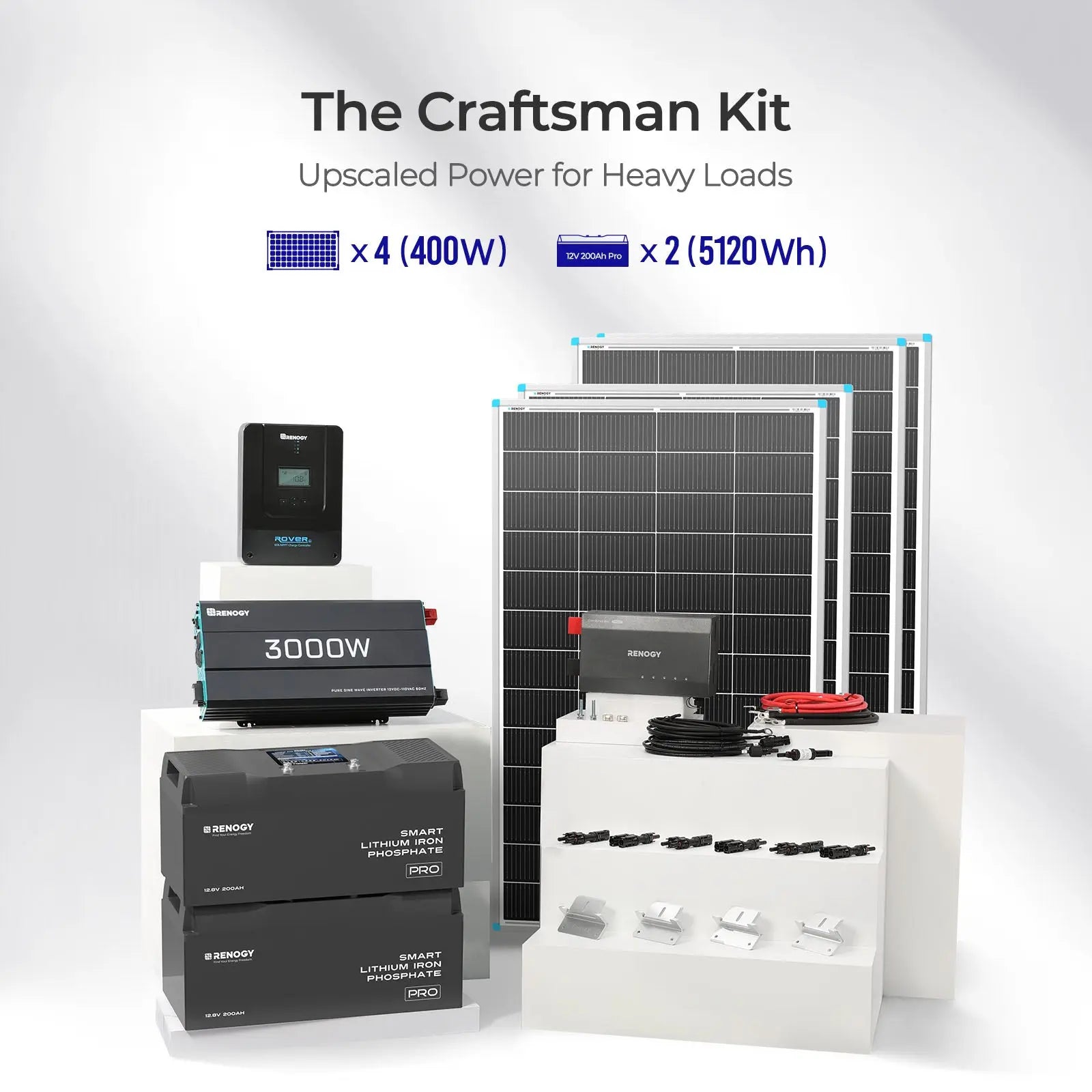

What's Included
- 100W 16BB N-Type Solar Panel x4
- Rover LI 40A MPPT Charge Controller x1
- 12V 200Ah Pro Smart LiFePO4 Battery x2
- 3000W 12V Pure Sine Wave Inverter x1
- Renogy 500A Combiner Box x1
- Solar Panel Mounting Z Bracket (Set of 4) x4
- Solar Y Branch Connectors MMF+FFM Pair x3
- 10AWG 20FT Solar Panel to Charge Controller Adaptor Kit x1
- 10AWG 8FT Battery to Charge Controller Tray Cables x1
- Copper Battery Interconnect Cable for 5/16in Lugs x2
- 40A Terminal Fuse + M8 Terminal Bolt x1
- 350A Terminal Fuse + M8 Terminal Bolt x1
- 15A Solar Connector Waterproof In-Line Fuse Holder with Fuse x2
- Battery Inverter Cables for 3/8in Lugs x2
